Mean Well Open & DIN Power Supply Units AC/DC PSU (print) 608216

Mean Well Brand: Mean Well
The parts are small, high-efficiency power supply units from Mean Well, designed for medical applications and offering various output voltages and wattage capacities.
Description Image Product Buy Pricing (Ex VAT) Dim Height Length Max. output current Min. temperature MTBF Output current (max.) - rounded Output voltage (max.) Power Width Type Input voltage (max.) Max. temperature Min. input voltage Misc Attribute 2 Misc Attribute 3 Number of Inputs Number of Outputs PFC

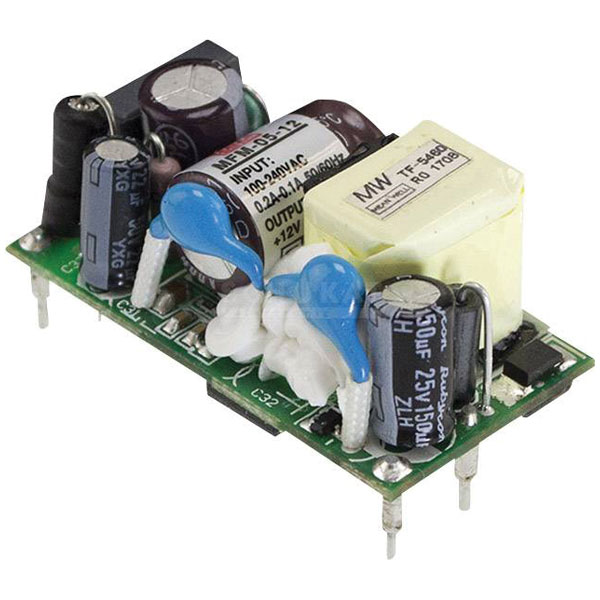

Mean Well MFM-05-12 PSU 12V 420mA 5W small size high efficiency medical approved
Mean Well MFM-05-12 PSU 12V 420mA 5W small size high efficiency medical approved
Standard range
Order code: 05-1145
MPN: MFM-05-12

Available to back orderBack-order availability date - 13/12/2025
1+ £7.95
5+ £7.71
10+ £7.46
25+ £7.15
50+ £6.92
Price per unit Ex VAT 		(L x W x H) 42 x 22.3 x 20.5 mm 20.5mm 42mm 420mA -40°C 1799000h 420mA 12V DC 5W 22.3mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
Mean Well MFM-05-3.3 MFM AC/DC PSU 3.3V 1.25A 4.1W Medical Approval
Mean Well MFM-05-3.3 MFM AC/DC PSU 3.3V 1.25A 4.1W Medical Approval
Standard range
Order code: 05-1147
MPN: MFM-05-3.3

Available to back orderBack-order availability date - 13/12/2025
1+ £10.63
5+ £10.32
10+ £9.99
25+ £9.55
50+ £9.23
Price per unit Ex VAT 		(L x W x H) 42 x 22.3 x 20.5 mm 20.5mm 42mm 1.25A -40°C 1799000h 1.25A 3.3V DC 4.1W 22.3mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
Mean Well MFM-10-12 power supply 12V 0.85A 10.2W medical approved
Mean Well MFM-10-12 power supply 12V 0.85A 10.2W medical approved
Standard range
Order code: 05-1148
MPN: MFM-10-12

9 in stock, despatched in 4 working days
1+ £7.31
Price per unit Ex VAT 		(L x W x H) 42 x 22.3 x 20.5 mm 20.5mm 42mm 0.85A -30°C 1756000h 850mA 12V DC 10.2W 22.3mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
Mean Well MFM-10-5 ac/dc psu 5 v dc 2 a 10 w medical grade low leakage
Mean Well MFM-10-5 ac/dc psu 5 v dc 2 a 10 w medical grade low leakage
Standard range
Order code: 05-1149
MPN: MFM-10-5

6 in stock, despatched in 4 working days
1+ £11.23
5+ £10.89
10+ £10.56
25+ £10.08
50+ £9.77
Price per unit Ex VAT 		(L x W x H) 42 x 22.3 x 20.5 mm 20.5mm 42mm 2A -30°C 1756000h 2A 5V DC 10W 22.3mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
Mean Well MFM-30-12 series AC/DC PSU 12V 2.5A 30W medical-grade PSU
Mean Well MFM-30-12 series AC/DC PSU 12V 2.5A 30W medical-grade PSU
Standard range
Order code: 05-1158
MPN: MFM-30-12

Available to back orderBack-order availability date - 13/12/2025
1+ £15.21
5+ £14.75
10+ £14.30
25+ £13.84
50+ £13.38
Price per unit Ex VAT 		(L x W x H) 65.5 x 35 x 23 mm 23mm 65.5mm 2.5A -40°C 779000h 2.5A 12V DC 30W 35mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
Mean Well MFM-30-24 AC/DC PSU 24V 1.3A 31.2W high-efficiency medical.
Mean Well MFM-30-24 AC/DC PSU 24V 1.3A 31.2W high-efficiency medical.
Standard range
Order code: 05-1159
MPN: MFM-30-24

Available to back orderBack-order availability date - 13/12/2025
1+ £19.28
5+ £18.71
10+ £18.12
25+ £17.35
50+ £16.79
Price per unit Ex VAT 		(L x W x H) 65.5 x 35 x 23 mm 23mm 65.5mm 1.3A -40°C 779000h 1.3A 24V DC 31.2W 35mm AC/DC PSU (print) 264V AC 85°C 80V AC Pulsed open 1 1 No
