Mean Well MFM-05-12 PSU 12V 420mA 5W small size high efficiency medical approved

Mean Well
Order Code:

05-1145

Brand: Mean Well MPN: MFM-05-12 EAN-13: 4021087042932
Qty Unit Price (Ex VAT)
1+ £7.95
5+ £7.71
10+ £7.46
25+ £7.15
50+ £6.92
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

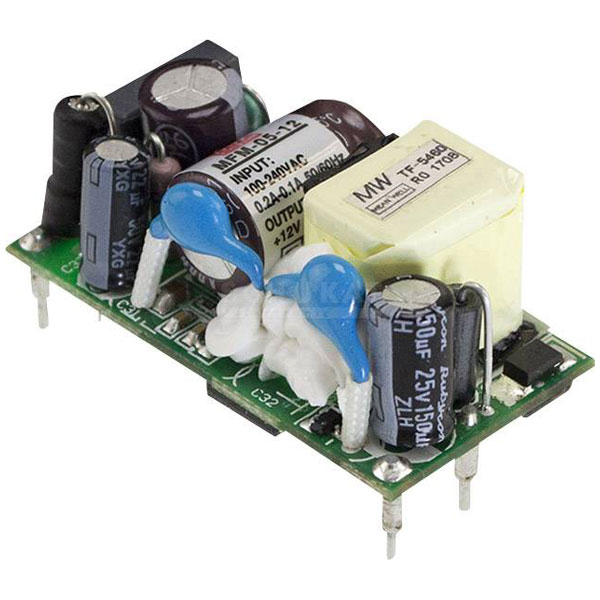

The Mean Well MFM-05-12 is an AC/DC power supply unit designed for PCB mounting. It delivers a 12 V DC output at 420 mA with a total power of 5 W, making it suitable for compact and energy-efficient applications. This power supply is ideal for use in small electronic devices and equipment requiring reliable DC voltage conversion from an AC source.
Type AC/DC PSU (print)
Output Voltage 12V DC
Output Current 420mA
Number of Outputs 1
Power Rating 5W
Dim (L x W x H) 42 x 22.3 x 20.5 mm
Height 20.5mm
Input voltage (max.) 264V AC
Length 42mm
Max. output current 420mA
Max. temperature 85°C
Min. input voltage 80V AC
Min. temperature -40°C
Misc Attribute 2 Pulsed
Misc Attribute 3 open
MTBF 1799000h
Number of Inputs 1
PFC No
Width 22.3mm
