Mean Well Open & DIN Power Supply Units AC/DC PSU (print) 608208

Mean Well Brand: Mean Well

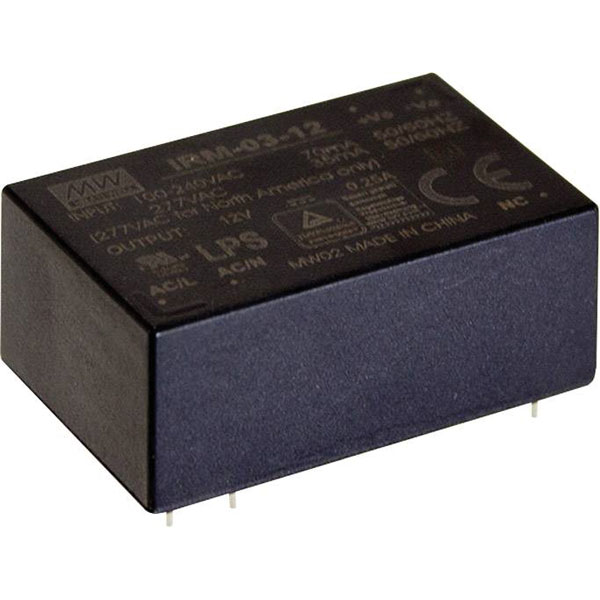

The Mean Well IRM series are compact AC/DC power supply units known for their low power consumption and efficient design.
Description Image Product Buy Pricing (Ex VAT) Connection Efficiency to Max. output current Output current (max.) - rounded Output voltage (max.) Residual ripple Consumption (standby) Dim Height Input Frequency Input voltage (max.) Length Min. input voltage Number of Outputs Operating Temperature Operating temperature (max.) Operating temperature (min.) Power Protection Class Tolerance (output voltage)
Mean Well IRM-03-15 PSU 15V DC 200mA 3W compact size low power consumption
Mean Well IRM-03-15 PSU 15V DC 200mA 3W compact size low power consumption
Standard range
Order code: 05-0926
MPN: IRM-03-15

Available to back orderBack-order availability date - 13/12/2025
1+ £6.28
5+ £6.10
10+ £5.91
25+ £5.84
50+ £5.73
Price per unit Ex VAT 		Pins 78% 200mA 200mA 15V DC 200 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-15S AC/DC PSU 15V 200mA 3W compact low power consumption
Mean Well IRM-03-15S AC/DC PSU 15V 200mA 3W compact low power consumption
Standard range
Order code: 05-0927
MPN: IRM-03-15S

Available to back orderBack-order availability date - 13/12/2025
1+ £6.28
5+ £6.07
10+ £5.89
25+ £5.81
50+ £5.71
Price per unit Ex VAT 		SMD 78% 200mA 200mA 15V DC 200 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-24S IRM-03 AC/DC PSU 24V 125mA 3W compact low-power unit
Mean Well IRM-03-24S IRM-03 AC/DC PSU 24V 125mA 3W compact low-power unit
Standard range
Order code: 05-0929
MPN: IRM-03-24S

Available to back orderBack-order availability date - 13/12/2025
1+ £6.25
5+ £6.06
10+ £5.87
25+ £5.71
50+ £5.49
Price per unit Ex VAT 		SMD 80% 125mA 125mA 24V DC 240 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-3.3 power supply 3.3V 900mA 3W compact low power usage
Mean Well IRM-03-3.3 power supply 3.3V 900mA 3W compact low power usage
Standard range
Order code: 05-0930
MPN: IRM-03-3.3

22 in stock, despatched in 4 working days
1+ £5.34
5+ £5.18
10+ £5.02
25+ £4.85
50+ £4.65
Price per unit Ex VAT 		Pins 68% 900mA 900mA 3.3V DC 100 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-5S series ac/dc psu 5 v dc 600 mA 3 W compact design
Mean Well IRM-03-5S series ac/dc psu 5 v dc 600 mA 3 W compact design
Standard range
Order code: 05-0932
MPN: IRM-03-5S

Available to back orderBack-order availability date - 13/12/2025
1+ £5.89
5+ £5.70
10+ £5.53
25+ £5.35
50+ £5.12
Price per unit Ex VAT 		SMD 72% 600mA 600mA 5V DC 100 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-9 PSU 9V 333mA 3W compact low power IoT-friendly
Mean Well IRM-03-9 PSU 9V 333mA 3W compact low power IoT-friendly
Standard range
Order code: 05-0933
MPN: IRM-03-9

46 in stock, despatched in 4 working days
1+ £5.90
5+ £5.71
10+ £5.55
25+ £5.35
50+ £5.11
Price per unit Ex VAT 		Pins 77% 333mA 333mA 9V DC 100 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
Mean Well IRM-03-9S PSU 9V DC 333mA 3W compact IoT support EN certified
Mean Well IRM-03-9S PSU 9V DC 333mA 3W compact IoT support EN certified
Standard range
Order code: 05-0934
MPN: IRM-03-9S

Available to back orderBack-order availability date - 13/12/2025
1+ £5.85
5+ £5.67
10+ £5.50
25+ £5.35
50+ £5.14
Price per unit Ex VAT 		SMD 77% 333mA 333mA 9V DC 100 mVp-p 75mW (L x W x H) 33.7 x 22.2 x 15 mm 15mm 47-63Hz 305V AC 33.7mm 85V AC 1 -30°C to +85°C +85°C -30°C 3W II ±2.5%
