Eaton Circuit Breakers Surge arrester 609788

Eaton Brand: Eaton
The Eaton selection of surge and lightning arresters is designed to provide 20 kA protection for both lightning and switchboard applications.
Description Image Product Buy Pricing (Ex VAT) Category type 2 Construction size Depth Factory colour Degree of protection (IP) Dim Integrated backup fuse Integrated short-circuit protection Height Integrated short-circuit protection selective to fuse gG Leakage Current Standards Leakage-current free Max. conductor cross section flexible (fine-strand) Max. conductor cross section solid (solid, stranded) Max. continuous voltage AC Max. continuous voltage DC Max. discharge surge current (8/20) Max. overcurrent protection device, parallel connection (fuse) Misc Attribute

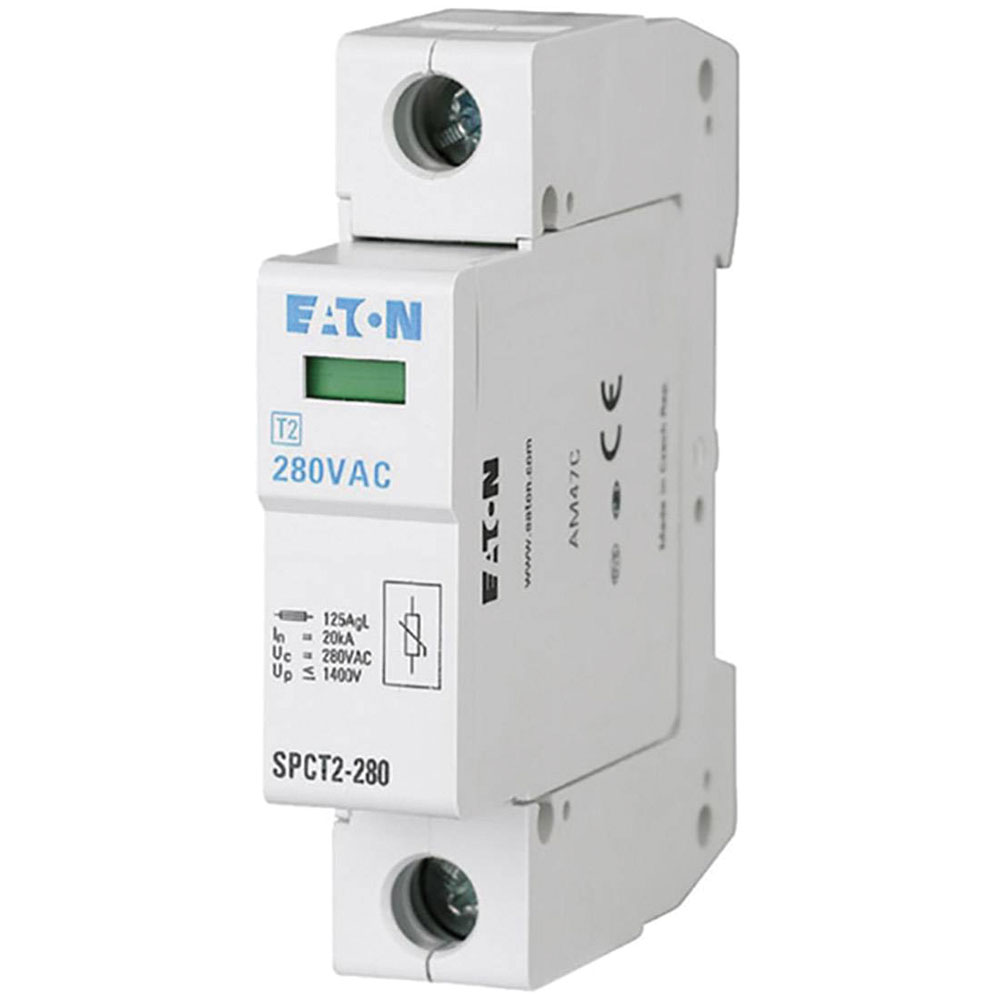

Eaton 167593 SPCT2-280/1 surge arrester; 20 kA lightning protection
Eaton 167593 SPCT2-280/1 surge arrester; 20 kA lightning protection
Standard range
Order code: 02-5767
MPN: 167593

2 in stock, despatched in 4 working days
1+ £33.94
Price per unit Ex VAT 		TRUE 1 modular spacing IP20 FALSE FALSE 0A 20kA FALSE 35mm² 25mm² 280V 0V 40kA 0A 1 pole
Eaton 167596 SPCT2-280/4 lightning arrester 20kA switchboard protection
Eaton 167596 SPCT2-280/4 lightning arrester 20kA switchboard protection
Extended range
Order code: 02-5768
MPN: 167596

Available to back order
1+ £116.01
Price per unit Ex VAT 		TRUE 4 modular spacing 75mm IP20 (W x H x D) 90 x 75 x 75 mm FALSE FALSE 75mm 0A 20kA FALSE 35mm² 25mm² 280V 0V 40kA 0A 4-pole
Eaton 167620 SPCT2-280-3+NPE surge arrester 20 kA switchboard protection
Eaton 167620 SPCT2-280-3+NPE surge arrester 20 kA switchboard protection
Standard range
Order code: 02-5769
MPN: 167620

1 in stock, despatched in 4 working days
1+ £129.17
Price per unit Ex VAT 		TRUE 4 modular spacing IP20 FALSE FALSE 0A 20kA FALSE 35mm² 25mm² 280V 0V 40kA 0A 3polig
Eaton 167621 SPCT2-335-1+NPE surge arrester for switchboards 20 kA
Eaton 167621 SPCT2-335-1+NPE surge arrester for switchboards 20 kA
Extended range
Order code: 02-5770
MPN: 167621

Available to back orderBack order, lead time 9 days
1+ £55.33
Price per unit Ex VAT 		TRUE 2 modular spacing IP20 FALSE FALSE 0A 20kA FALSE 35mm² 25mm² 335V 0V 40kA 0A 1 pole
Eaton 304960 SPZT123 Surge arrester 300/3+NPE-H 7.5 kA 1pc
Eaton 304960 SPZT123 Surge arrester 300/3+NPE-H 7.5 kA 1pc
Standard range
Order code: 02-6619
MPN: 304960

1 in stock, despatched in 4 working days
1+ £324.99
Price per unit Ex VAT 		Light grey 7.5kA
Eaton EP-501041 SPZT123 surge arrester 40 mm busbar 7.5 kA 1pc
Eaton EP-501041 SPZT123 surge arrester 40 mm busbar 7.5 kA 1pc
Standard range
Order code: 02-6636
MPN: EP-501041

4 in stock, despatched in 4 working days
1+ £171.42
Price per unit Ex VAT 		102.3mm Light grey (W x H x D) 38 x 233.4 x 102.3 mm 233.4mm 7.5kA VDE 0100-443/-534Class I+II+III/type 1+2+3IEC 61643-11 2011EN 61643-11: 2012+A11: 2018Lightning protection class III and IV according to IEC 62305, fault current free SPZT123-300/3+NPE-S-OS
