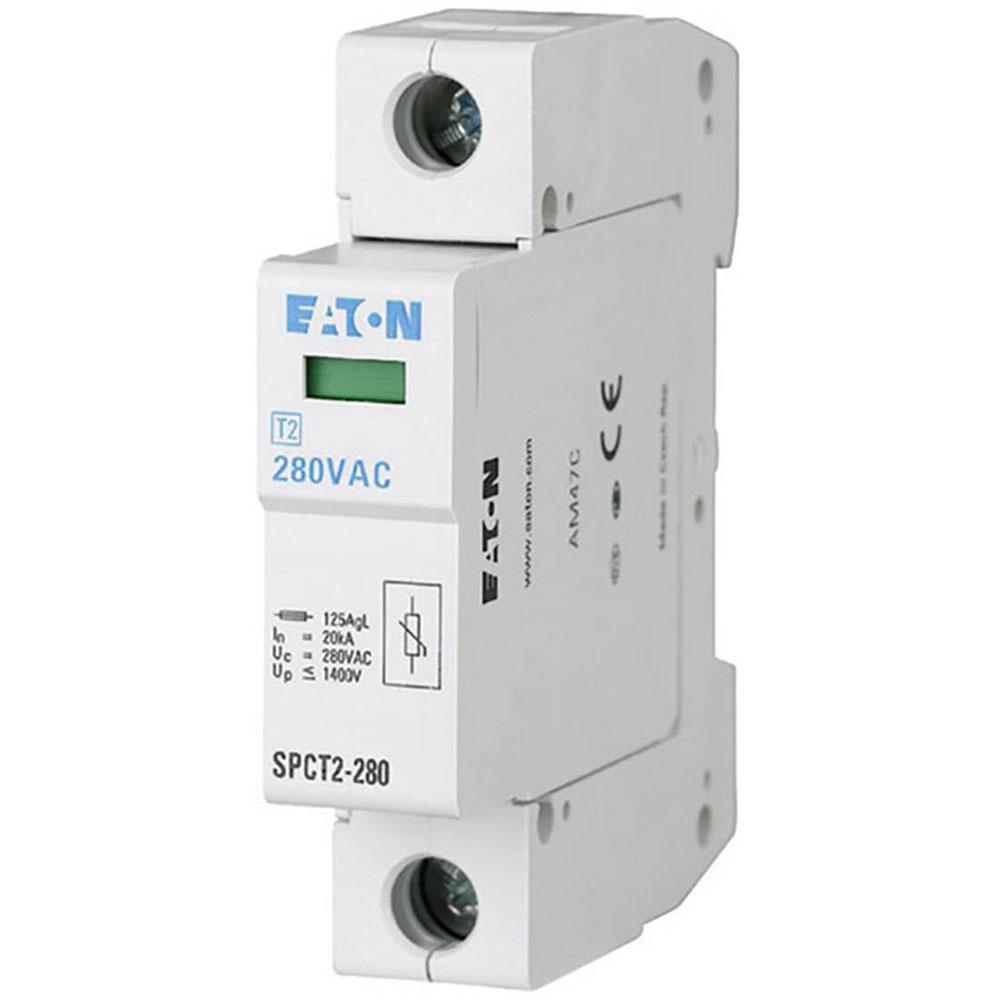

The Eaton 167593 SPCT2-280/1 surge arrester offers protection with a 20 kA capacity, typically used in switchboards. It is designed to safeguard electrical systems from voltage transients and surges. This product is often employed to enhance the safety and longevity of electrical installations.
| Type |
Surge arrester |
| Category type 2 |
TRUE |
| Construction size |
1 modular spacing |
| Degree of protection (IP) |
IP20 |
| Integrated backup fuse |
FALSE |
| Integrated short-circuit protection |
FALSE |
| Integrated short-circuit protection selective to fuse gG |
0A |
| IP Rating |
IP20 |
| Leakage Current |
20kA |
| Leakage-current free |
FALSE |
| Max. conductor cross section flexible (fine-strand) |
35mm² |
| Max. conductor cross section solid (solid, stranded) |
25mm² |
| Max. continuous voltage AC |
280V |
| Max. continuous voltage DC |
0V |
| Max. discharge surge current (8/20) |
40kA |
| Max. overcurrent protection device, parallel connection (fuse) |
0A |
| Max. overcurrent protection device, series connection (fuse) |
125A |
| Max. PV-voltage |
0V |
| Misc Attribute |
1 pole |
| Mounting method |
DIN rail (top hat rail) 35mm |
| Nominal discharge surge current (8/20) |
20kA |
| Number of conductors (without earthing) |
1 |
| Short-circuit breaking capacity (Isccr) |
0kA |
| Signalling at the device |
Optic |
| Surge protection for |
Switchboards |
| System configuration DC |
FALSE |
| System configuration IT |
FALSE |
| System configuration other |
TRUE |
| System configuration TN |
TRUE |
| System configuration TN-C |
FALSE |
| System configuration TN-C-S |
FALSE |
| System configuration TN-S |
TRUE |
| System configuration TT |
FALSE |
| Voltage protection level |
1.4kV |
| Voltage protection level L-N |
0kV |
| Voltage protection level N-PE |
0kV |
| Voltage Rating |
0V |
| With remote signalling contact |
FALSE |
