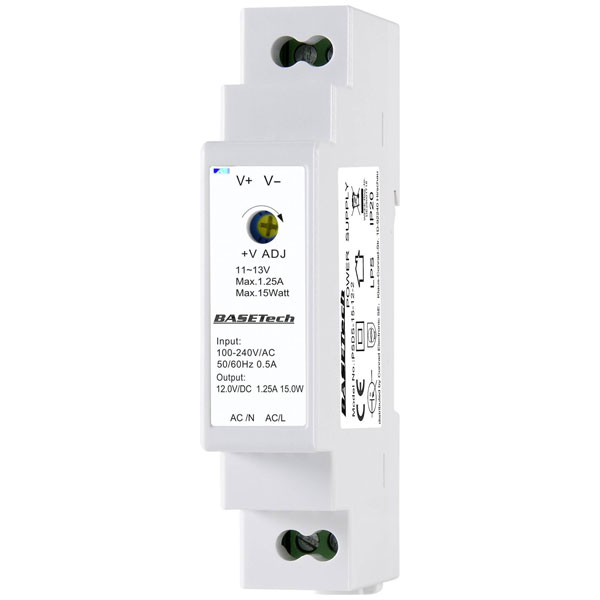

Basetech PSDS-15-12-2 DIN Rail PSU 12V 1.25A 15W 1 Output

Basetech
Order Code:

08-5395

Brand: Basetech MPN: BT-2250247 EAN-13: 4064161040042
Qty Unit Price (Ex VAT)
1+ £9.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
464 in stock, despatched in 4 working days

The Basetech PSDS-15-12-2 is a rail-mounted power supply unit (PSU) providing 12 V output at 1.25 A with a total power of 15 W. Designed for compatibility with DIN rail systems, it is ideal for industrial applications requiring reliable and compact power solutions. This PSU is well-suited for use in automation systems, control panels, and other industrial environments.
Type Rail mounted PSU (DIN)
Output Voltage 12 V/50 - 60 Hz
Connection Screw terminal
Dim (L x W x H) 58 x 18 x 90 mm
Efficiency 85%
Height 90mm
Input Voltage 100-240 V/50 - 60 Hz
Input voltage (max.) 240V AC
Inputs 0.5A
Length 58mm
Max. operating temperature (derating) 50°C
Max. output current 1.25A
Max. temperature 80°C
Min. input voltage 100V AC
Min. operating temperature (derating) -20°C
Min. temperature -40°C
Misc Attribute 1 Din Rail PSUs
Misc Attribute 2 PSDS-15-12-2
Number of Outputs 1
Operating temperature (max.) 50°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 1.25A
Output voltage (nominal) 12V
Plastic free packaging Plastic-free packaging
Power 15W
Width 18mm
