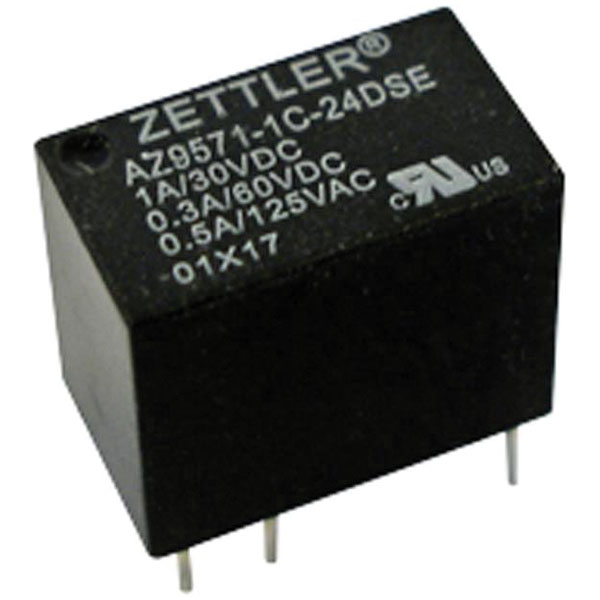

Zettler Electronics Relay Modules PCB relay 619666

Zettler Electronics Brand: Zettler Electronics
The Zettler Electronics PCB relays are a versatile group of durable electronic components designed for various voltage levels and functional configurations, suitable for wave soldering and change-over applications.
Description Image Product Buy Pricing (Ex VAT) Coil Voltage Switching Current Length Width Height Contact Material Connection Dim Durability Max. pick-up voltage Fall Time Max. temperature Min. pick-up voltage Min. temperature Resistance (coil) Response Time Switching voltage (max.) Type Contact Type Control Mode
Zettler Electronics AZ9571-1C-5DSE PCB Relay 5V DC Sealed for Wave Soldering
Zettler Electronics AZ9571-1C-5DSE PCB Relay 5V DC Sealed for Wave Soldering
Extended range
Order code: 08-3705
MPN: AZ9571-1C-5DSE

14 available to back orderBack-order availability date - 09/01/2026
3+ £1.79
Price per unit Ex VAT 		5V DC 1 12.50mm 7.50mm 10.00mm AgNi+Au (L x W x H) 12.50 x 7.50 x 10.00 mm 5 x 10E6 10V DC +70°C 4V DC -30°C 167Ω 5ms 60V DC PCB relay 1 change-over monostable, 1 coil
Zettler Electronics AZ957-1C-12DE PCB Relay 12V DC 1A 1 Change-Over
Zettler Electronics AZ957-1C-12DE PCB Relay 12V DC 1A 1 Change-Over
Standard range
Order code: 08-3706
MPN: AZ957-1C-12DE

15 available to back orderBack-order availability date - 09/01/2026
3+ £1.56
Price per unit Ex VAT 		12V DC 1A 12.8mm 7.8mm 10.3mm AgPd + Au Solder pins (L x W x H) 12.8 x 7.8 x 10.3 mm 1 x 10E6 1ms +70°C -40°C 720Ω 3ms PCB relay 1 change-over monostable, 1 coil
Zettler Electronics AZ957-1C-24DE PCB Relay 24V DC 1A 1 Change-Over 1pc
Zettler Electronics AZ957-1C-24DE PCB Relay 24V DC 1A 1 Change-Over 1pc
Extended range
Order code: 08-3707
MPN: AZ957-1C-24DE

Available to back orderBack order, lead time 11 weeks
3+ £1.65
Price per unit Ex VAT 		24V DC 1A 12.8mm 7.8mm 10.3mm AgPd + Au Solder pins (L x W x H) 12.8 x 7.8 x 10.3 mm 1 x 10E6 1ms +70°C -40°C 2880Ω 3ms PCB relay 1 change-over monostable, 1 coil
Zettler Electronics AZ957-1C-24DSE Relay 24V DC 1A PCB 1 Change-over 1pc
Zettler Electronics AZ957-1C-24DSE Relay 24V DC 1A PCB 1 Change-over 1pc
Standard range
Order code: 08-3708
MPN: AZ957-1C-24DSE

3 available to back orderBack-order availability date - 09/01/2026
3+ £1.71
Price per unit Ex VAT 		24V DC 1A 12.8mm 7.8mm 10.3mm AgPd + Au Solder pins (L x W x H) 12.8 x 7.8 x 10.3 mm 1 x 10E6 1ms +80°C -40°C 3840Ω 5ms PCB relay 1 change-over monostable, 1 coil
