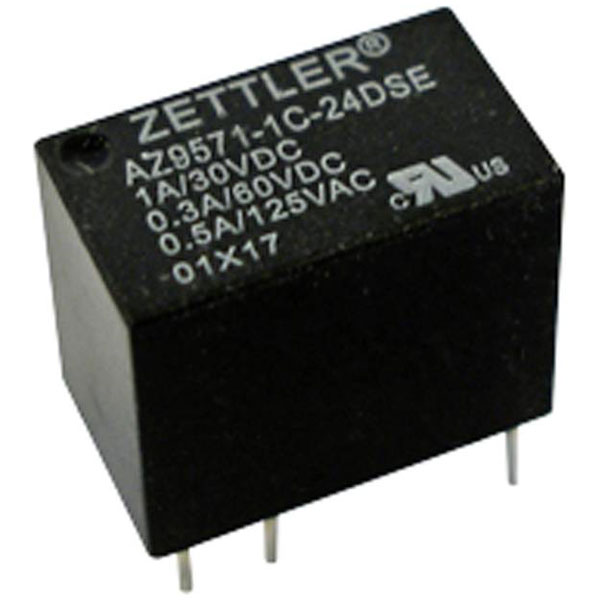

Zettler Electronics AZ9571-1C-5DSE PCB Relay 5V DC Sealed for Wave Soldering

Zettler Electronics
Order Code:

08-3705

Brand: Zettler Electronics MPN: AZ9571-1C-5DSE EAN-13: 2050006599013
Qty Unit Price (Ex VAT)
3+ £1.79
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
22 in stock, despatched in 4 working days

The Zettler Electronics AZ9571-1C-5DSE is a PCB-mounted relay designed for 5 V DC applications, featuring one change-over contact. Manufactured by Zettler Electronics, this mini relay is ideal for use in printed circuit boards and can be implemented in various electronic devices. Typical applications include signal switching in telecommunication systems and control systems.
Coil Voltage 5V DC
Contact Configuration 1CO (SPDT)
Switching Current 1A
Coil Resistance 167Ω
Contact Material AgNi+Au
Control Mode monostable, 1 coil
Dimensions (L x W x H) 12.50 x 7.50 x 10.00 mm
Durability 5 x 10E6
Height 10.00mm
Length 12.50mm
Max. pick-up Voltage 10V DC
Max. switching capacity 30W
Max. temperature +70°C
Min. pick-up Voltage 4V DC
Minimum Temperature -30°C
Mounting Type PCB
Response Time 5ms
Switching Voltage Max 60V DC
Type PCB relay
Width 7.50mm
