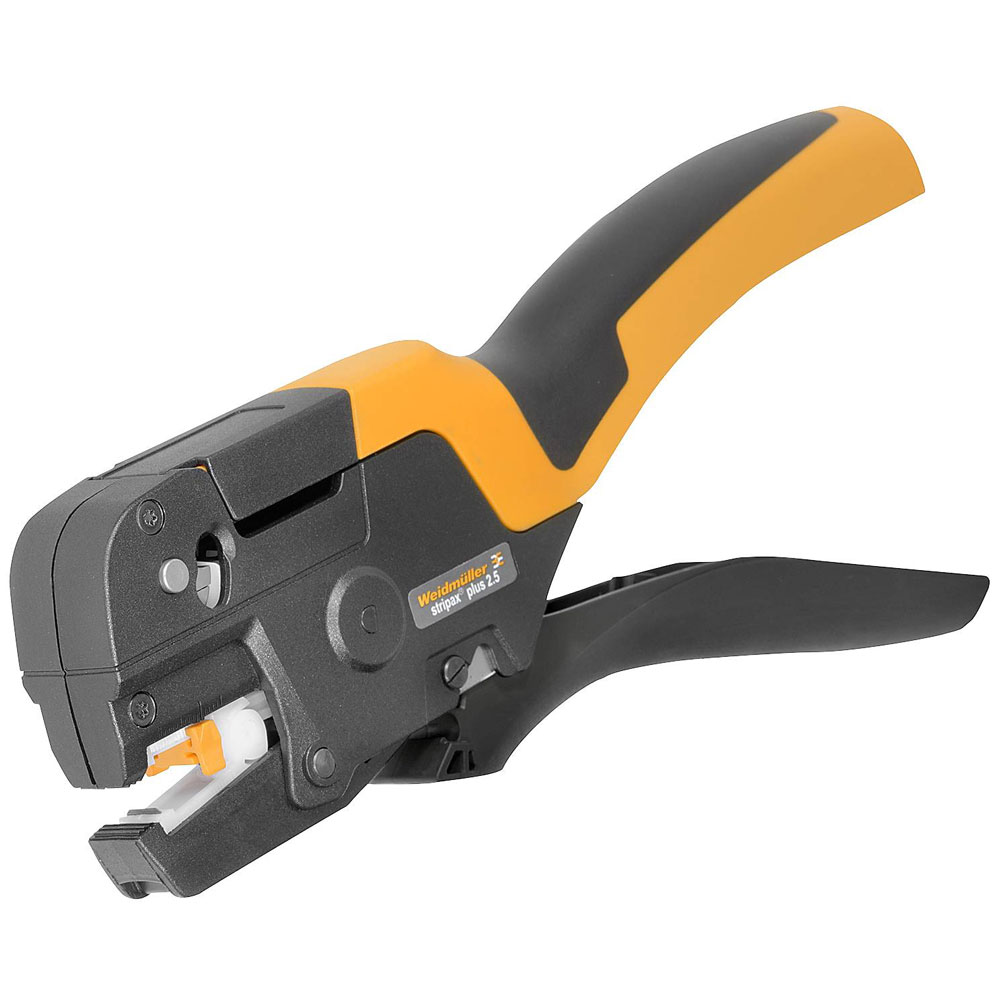

The Weidmüller STRIPAX PLUS 2.5 is a versatile crimping tool designed for linked ferrules ranging from 0.5 up to 2.5 mm². This durable tool ensures precise and efficient crimping, making it ideal for professional electricians and technicians. Typical applications include electrical installations and repairs where reliable connections are crucial.
| Type |
Crimper |
| For Use With |
Linked ferrules |
| Length |
210mm |
| Conductor cross-section, max. AWG |
AWG 14 |
| Conductor cross-section, min. AWG |
AWG 20 |
| Contains Lead |
No |
| Crimp area |
0.5 up to 2.5mm² |
| Crimp area (max.) |
2.5mm² |
| Crimp area (min.) |
0.5mm² |
| Crimp area AWG |
14 up to 20 awg |
| Crimp area AWG (max.) |
14AWG |
| Crimp area AWG (min.) |
20AWG |
| Crimping range, max. |
2.5mm² |
| Crimping range, min. |
0.5mm² |
| Crimping type/profile |
Trapezoidal crimp |
| Depth of notch adjustable |
true |
| Description of article |
(1)Crimping tool |
| ECLASS 14 |
21-04-37-06 |
| ECLASS 15.0 |
21-04-37-06 |
| ESD tested |
false |
| ETIM 10 |
EC002109 |
| ETIM 8.0 |
EC002109 |
| ETIM 9.0 |
EC002109 |
| Grip design |
1-component |
| GTIN (EAN) |
4008190067267 |
| Handle cover |
Plastic grips |
| Height |
250mm |
| Insulated |
true |
| Isolation protection 1000 V |
false |
| Longitudinal section |
false |
| Mount |
Wire |
| Net weight |
248.63g |
| Radiation Hardening |
No |
| REACH SVHC |
Lead 7439-92-1 |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliance Status |
Not affected |
| RoHS Compliant |
Yes |
| Round edge |
false |
| SCIP |
2159813b-98fd-4068-b62a-bc89a046c012 |
| Spiral cut |
false |
| Strip length adjustable |
true |
| Strip range AWG |
20 - 14 |
| Strip range cross-section |
0.5 - 2.5 |
| Strip range diameter |
0.81 - 1.7 |
| Type of contact |
Strips of linked wire-end |
| VDE Tested |
false |
| Weight |
250.91g |
| Width |
210mm |
| Width (inches) |
8.2677 inch |
| Wire end ferrules cross-section, max. |
2.5mm² |
| Wire end ferrules cross-section, min. |
0.5mm² |
| Wire Gauge (Max) |
20AWG |
| Wire Gauge (Min) |
14AWG |
| With wire cutter |
true |
