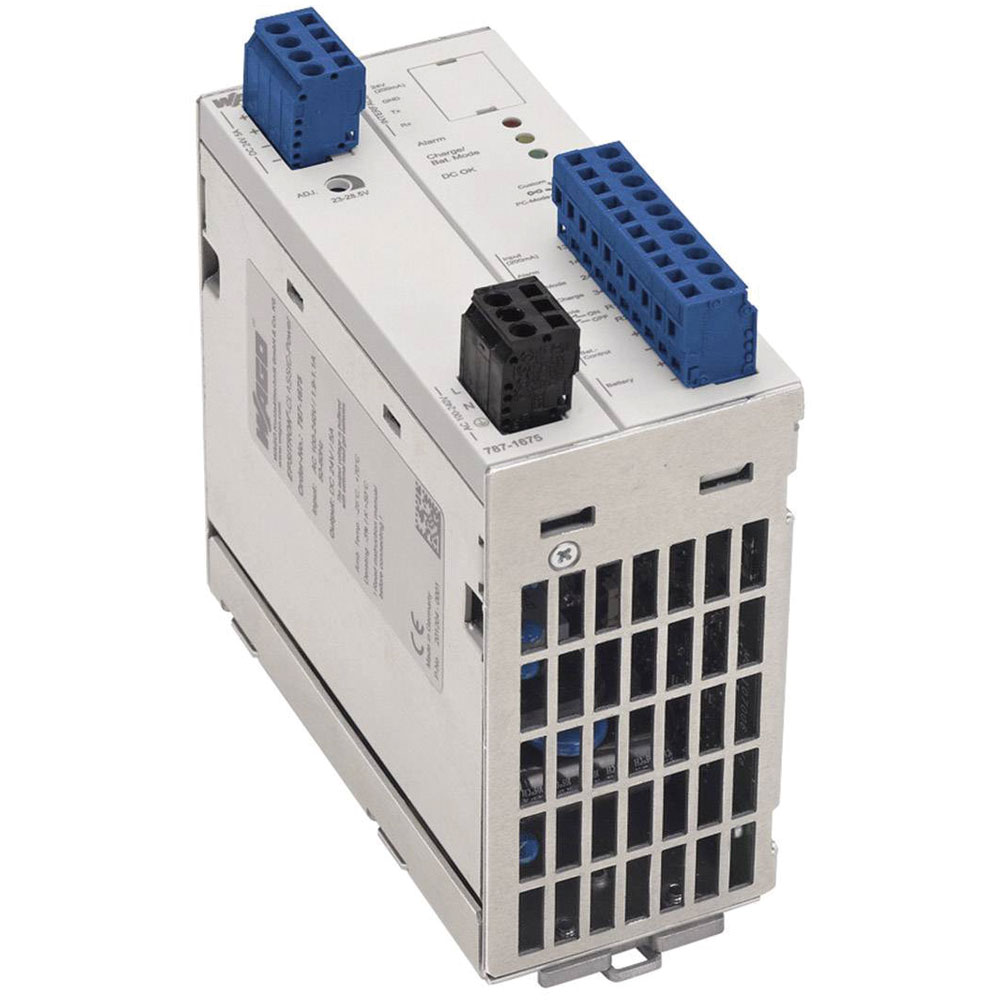

WAGO 787-1675 UPS with RS-232 Battery Control Cabinet-Ready

The WAGO EPSITRON® 787-1675 Industrial UPS ensures reliable power supply in industrial environments. It features advanced protection mechanisms and is suitable for critical applications where uninterrupted power is essential. Ideal for manufacturing facilities and automation systems, it guarantees operational continuity during power disruptions.

Type	Industrial UPS
Input Voltage	240V AC
Output Voltage	24V DC
Current Rating	26A
Bridging time, max load	0.5s
Category	Power Supplies
Connection	CAGE CLAMP®
Connections	0,5 - 10 mm² (WAGO series 831)
Depth	127mm
Dim	(W x H x D) 60 x 135.5 x 127 mm
Fine-stranded conductor max. AWG	12 AWG
Fine-stranded conductor max. mm²	2.5mm²
Fine-stranded conductor min. AWG	12 AWG
Fine-stranded conductor min. mm²	0.08mm²
Height	135.5mm
Height inch	5inches
Height mm	127mm
Input Current	0.1 - 21.5A
Interfaces	RS232
Minimum Input Volage	100V AC
Misc Attribute	EPSITRON® 787-1675
No of Outlets	2
of which battery-buffered	2
Output current (details)	20A
Product Main Function	Uninterruptible power supply
Single-stranded conductor max. AWG	12 AWG
Single-stranded conductor max. mm²	2.5mm²
Single-stranded conductor min. AWG	28 AWG
Single-stranded conductor min. mm²	0.08mm²
Stripping length of 1 mm	8mm
Stripping length up to 1 mm	9mm
Unit Weight	KGM
Weight	800g
Width	60mm
Width inch	2.362inches
Width mm	60mm
with surge protection	2
