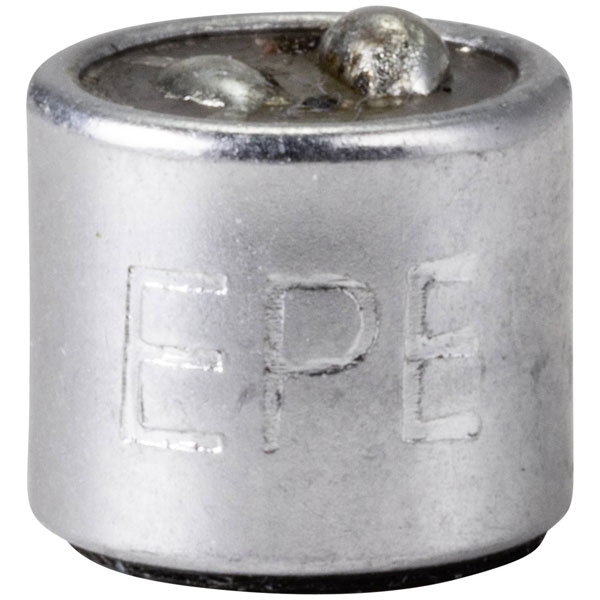

TRU COMPONENTS TC-9202044 Microphone capsule 4.5-10V DC 100Hz-10kHz range

TRU COMPONENTS TC-9202044 is a precision-engineered microphone capsule designed for demanding acoustic applications. Operating within a voltage range of 4.5 to 10 V DC, it is capable of capturing sound with a frequency response from 100 Hz to 10 kHz, making it suitable for applications that require accurate sound reproduction, such as hifi audio systems and model making. Due to its reliable performance, this microphone capsule is also an ideal component for alarm systems where clear signal detection is crucial. Its compact and versatile design enables integration into scale models as a signal sounder, enhancing the realism and functionality of model projects. The TC-9202044's robust performance in diverse environments makes it an essential component for precise audio capture tasks in various engineering and technical settings.

Type	TC-9202044
Connection	Print
Content	1
Diameter	6mm
Dimensions	(Ø x H) 6 mm x 5 mm
Frequency Range	100 Hz - 10000 Hz
Height	5mm
Impedance	2200Ω
Max. frequency	10000Hz
Max. operating voltage	10V DC
Min. frequency	100Hz
Min. operating voltage	4.5V
Operating Voltage	4.5 - 10 V DC
Product Type	Microphone capsule
Sensitivity	-44dB
