TracoPower TEP 100-1212 DC-DC Converter 100W 12V 12V

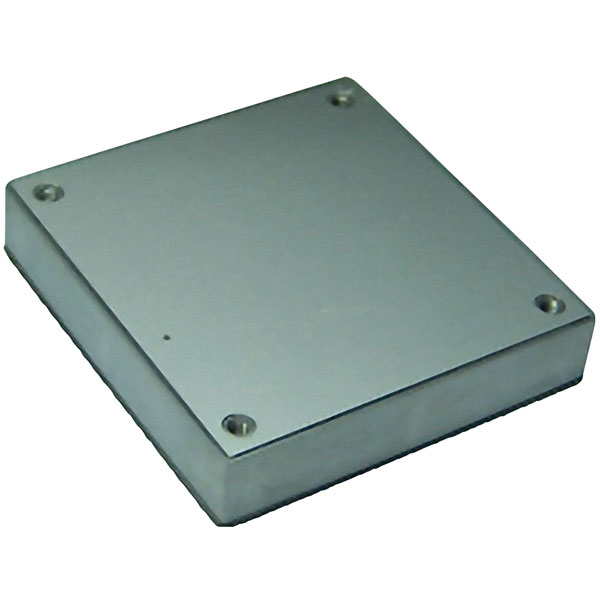

The TracoPower TEP 100-1212 is a DC/DC Converter with a wide 2:1 input voltage range and supplied in a rugged, sealed metal case.
This converter is suitable for a wide range of applications, but the product has been designed particularly for industrial applications where often no PCB mounting is possible, and has to be mounted on a chassis. Four threaded M3 inserts in the module make the chassis mount or attachment of a heatsink for optimal thermal management very simple.

This converter has a very high efficiency allowing it to operate at temperatures up to +60°C with natural convection cooling, and without any power derating. Further features include output voltage trimming, Remote On/Off and under voltage lockout. The very wide input voltage range and reverse input voltage protection make these converters ideal for battery operated systems.

• Rugged, compact metal case
• Easy chassis mount
• Screw terminal adaptor available for easy connection
• Wide 2:1 input voltage range
• Full load operation up to 60°C with convection cooling
• Soft start
• Under voltage lock-out circuit
• Reverse input voltage protection
• Input protection filter
• 3-year product warranty
• Supplied with an input voltage of 9 to 18VDC
• Supplied with a Power rating of 100W
• Supplied with an Output Current of 8.4A
• Supplied with an Output Voltage of 12VDC
• Manufacturer's part: TracoPower TEP 100-1212
