TracoPower DC/DC Converters, TEP 100 Series, 100W

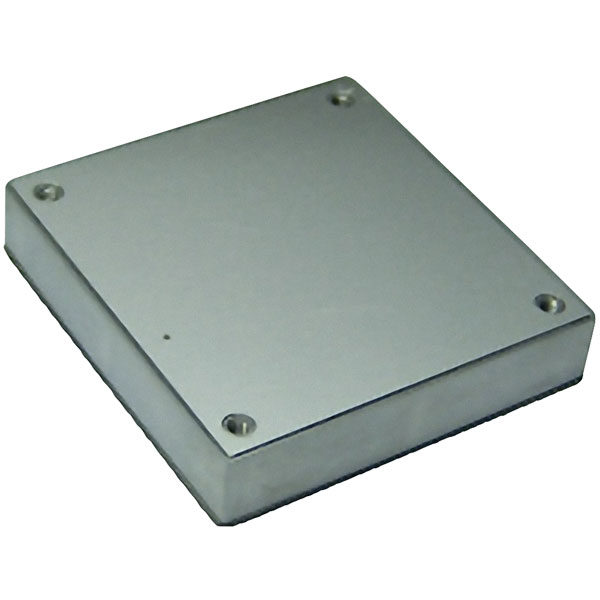

A wide range of TracoPower DC/DC Converters from the TEP-100 Series. The TEP-100 Series is a family of isolated high performance DC-DC converter modules with wide 2:1 input voltage ranges and come supplied in a rugged, sealed metal case.

These converters are suitable for a wide range of applications, but the product has been designed particularly also for industrial applications where often no PCB mounting is possible and has to be mounted on a chassis. Four threaded M3 inserts in the module makes chassis mount or the attachment of a heatsink for optimal thermal management very simple.

These converters have a very high efficiency allowing them to operate at temperatures up to +60°C with natural convection cooling without power derating. Further features include output voltage trimming, Remote On/Off and under voltage lockout. The very wide input voltage range and reverse input voltage protection make these converters ideal for battery operated systems.

• Rugged, compact metal case
• Easy chassis mount
• Screw terminal adaptor available for easy connection
• Wide 2:1 input voltage range
• Full load operation up to 60°C with convection cooling
• Soft start
• Under voltage lock-out circuit
• Reverse input voltage protection
• Input protection filter
• 3-year product warranty
• Available with input voltage options of 9 to 18VDC, 18 to 36VDC and 36 to 75 VDC
• Supplied with a Power rating of 100W
• Available with an Output Voltage of 3.3, 5.0, 12, 24, 28 and 48VDC
