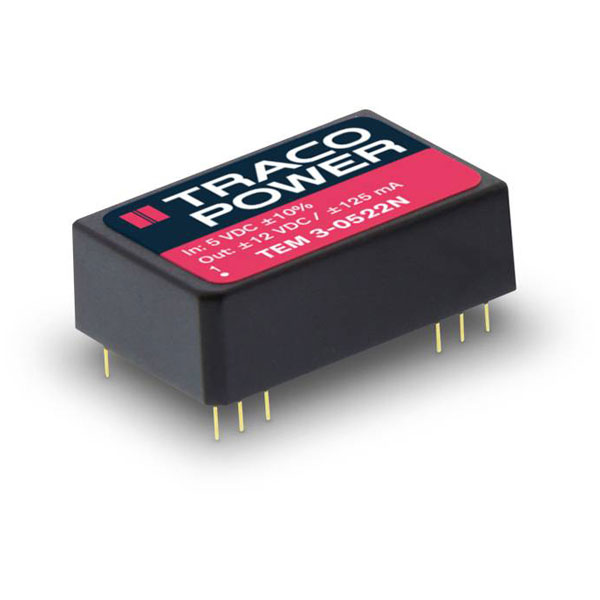

TracoPower TEM 3-0522N DC/DC Converter 5V 12V DIL 24 Case 3W Dual Output

TracoPower
Order Code:

07-8149

Brand: TracoPower MPN: TEM 3-0522N
Qty Unit Price (Ex VAT)
1+ £11.88
5+ £11.52
10+ £11.17
25+ £10.69
50+ £10.22
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 28/12/2025

TracoPower manufactures the TEM 3-0522N direct current converter, which features dual outputs of 12 V DC and -12 V DC, each providing 125 mA output current with a total power capacity of 3 W. This DC/DC converter is ideal for use in print applications, where reliable voltage conversion is essential. Its compact design and efficiency make it suitable for use in various electronic projects and devices requiring stable power supply solutions.
Connection Solder pins
Dim (L x W x H) 32 x 13.8 x 20 mm
Efficiency (max.) 78%
Height 20mm
Input voltage (max.) 5.5V DC
Insulation Voltage 1500V DC
Length 32mm
Max. output current 125mA
Min. input voltage 4.5V DC
Misc Attribute 1 TEM 3-0522 N
Nominal Voltage 5V DC
Number of Outputs 2
Operating temperature (max.) 85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 125mA
Power 3W
Type DC/DC converter (print)
Width 13.8mm
