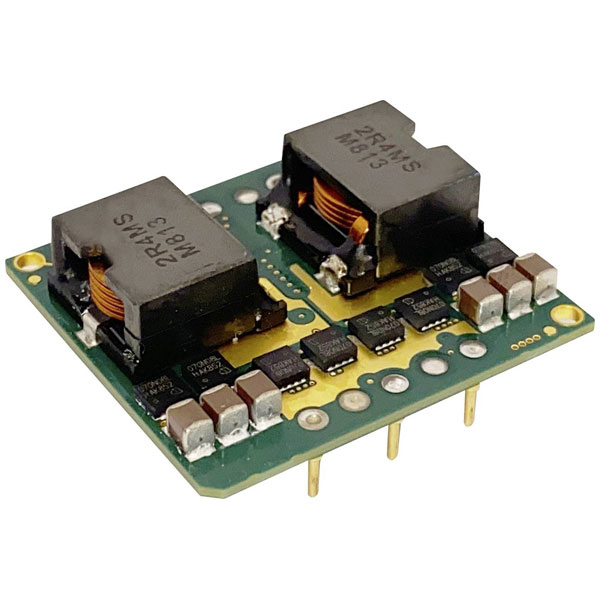

TDK I7A24045A033V-001-R i7A DC/DC Converter 5V/12V/-12V 45A 750W 1piece

The TDK I7A24045A033V-001-R DC/DC converter efficiently converts 5 V DC input to both 12 V and -12 V DC outputs with a maximum current of 45 A, delivering up to 750 W of power. This versatile converter is ideal for applications requiring high power density and reliable performance, such as industrial automation and telecommunications. The product package contains 1 piece to meet your system integration needs.

Output Voltage	3.3V DC
Input Voltage Range	32V DC
Power Rating	750 W
Output Current	45A
Dim	(L x W x H) 34 x 36.8 x 11.5 mm
Height	11.5mm
Industry Standard Size	1/16 brick size
Input Voltage Range[DC] / Vdc	18 to 32
Isolation	Non-isolated
Length	34mm
Max. output current	45A
Maximum Operating Temperature	+125°C
Maximum Output Current / A	45
Maximum Output Power / W	750,PCB mount, 750W, 3.3 to 18V
Minimum Input Volage	18V DC
Nominal Input Voltage[DC] / Vdc	24,Non-Isolated, Step-down
Nominal Voltage	5V DC
Number of Outputs	1.0
Operating temperature (min.)	-40°C
Output Voltage Range[DC] / Vdc	3.3 to 18
Package / Mounting	PCB mount
Power	750W
Series	i7A,Power Supplies, Sources and Loads
Terminal Style	DC-DC Converters,Through Hole
Type	DC/DC converter
Weight	25g
Width	36.8mm
