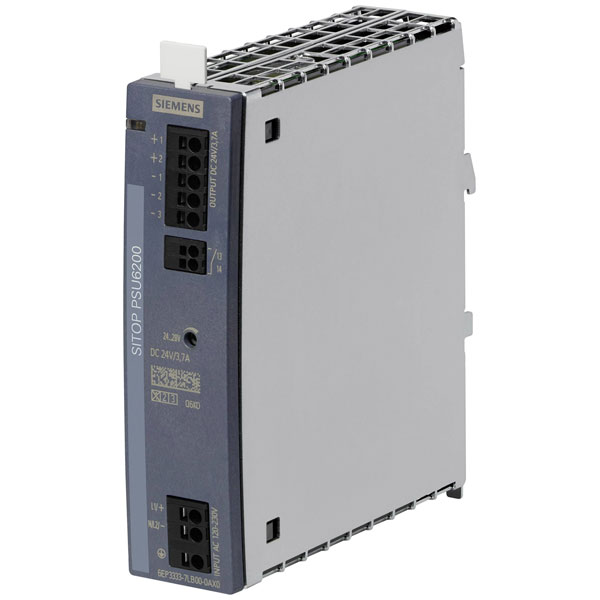

Siemens 6EP33337LB000AX0 sitop psu6200 Power supply 24V 3.7A 89W 1 output

The Siemens 6EP3333-7LB00-0AX0 power supply unit provides 24 V output at 3.7 A, delivering a total of 89 W of power. Designed for industrial applications, it features a single output and is mounted on a DIN rail. This unit is ideal for use in automation systems, control panels, and other industrial environments requiring reliable power supply solutions.

Type	Power supply unit
Output Voltage	24V
Output Current	3.7A
Number of Outputs	1
Power Rating	89W
1st secondary output voltage	24 - 24V
2nd secondary output voltage	N/A
3rd secondary output voltage	N/A
Built-in height	225mm
Built-in width	35mm
Degree of protection (IP)	IP20
Degree of protection (NEMA)	N/A
Depth	125mm
Dim	(L x W x H) 125 x 35 x 135 mm
Direct mounting possible	false
Height	135mm
Length	125mm
Max. output current	3.7A
Max. output current 1	3.7A
Max. output current 2	N/A
Max. output current 3	N/A
Max. temperature	85°C
Min. temperature	-40°C
Misc Attribute	6EP3333-7LB00-0AX0
Nominal value output current 1	3.7A
Nominal value output current 2	N/A
Nominal value output current 3	N/A
Nominal value output voltage 1	24V
Nominal value output voltage 2	N/A
Nominal value output voltage 3	N/A
Operating temperature (max.)	70°C
Operating temperature (min.)	-25°C
Output voltage stabilized	true
Performance level according to EN ISO 13849-1	N/A
Phases	1
Power Consumption	N/A
Power Output	89W
Rated supply voltage AC 50 Hz	240 - 240V
Rated supply voltage AC 60 Hz	120 - 120V
Rated supply voltage DC	120 - 240V
Secondary voltage adjustable	true
Short-circuit-proof	true
SIL according to IEC 61508	N/A
Stabilized	true
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	N/A
Type of electric connection	N/A
Voltage type (supply voltage)	AC/DC
Wall mounting possible	false
Weight	0.7kg
Width	35mm
Width in number of modular spacings	N/A
