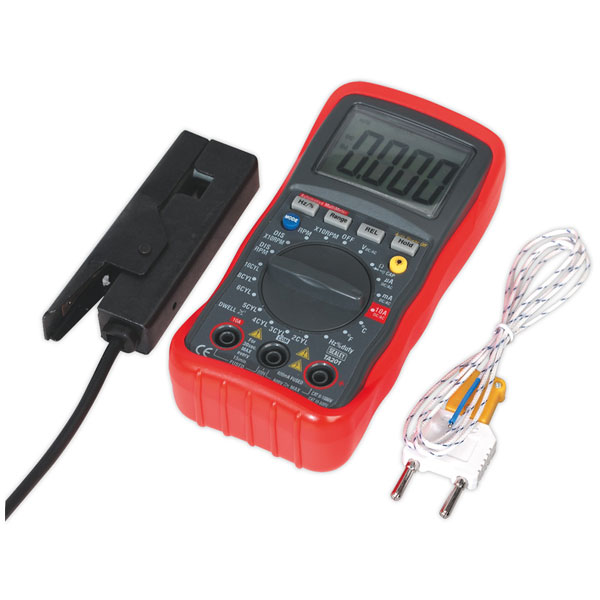

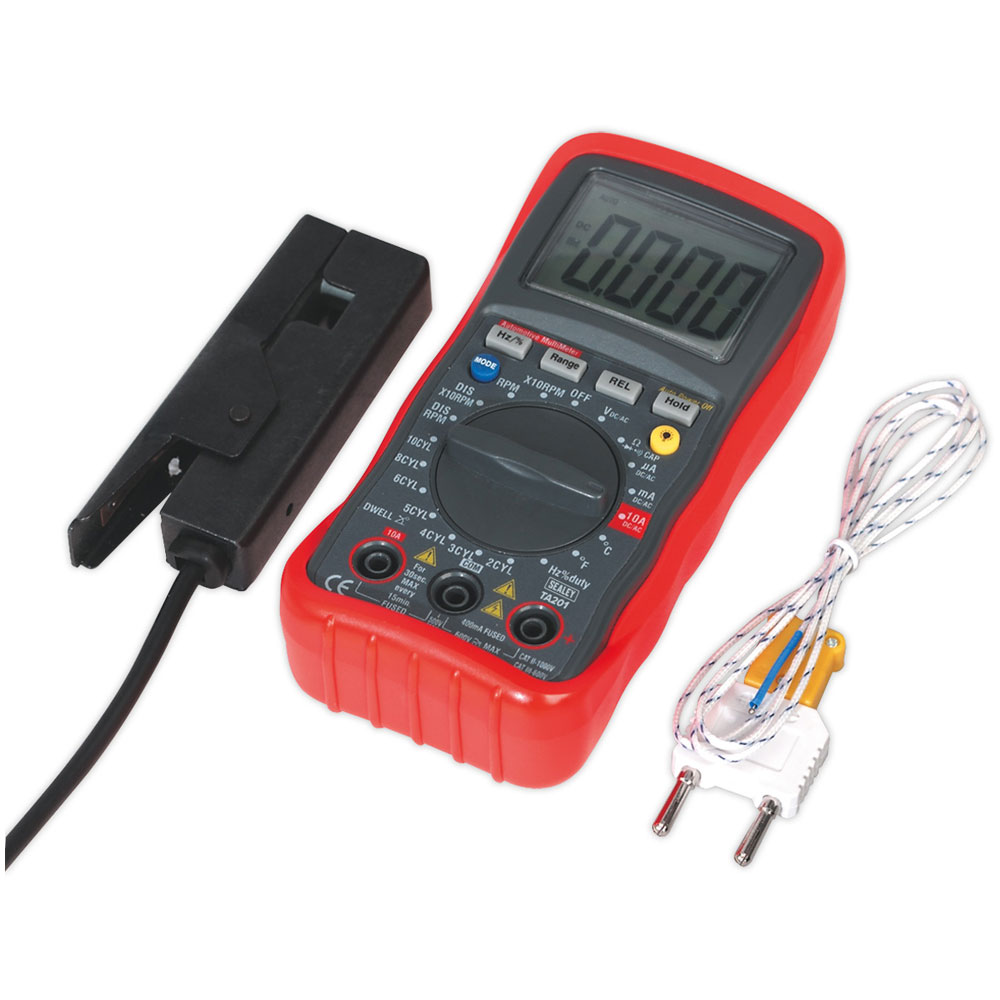

Sealey TA201 Digital Automotive Analyser 13 Function with Ic

Compact size meter with 4-digit 22mm, high-contrast LCD display and back light. Features auto-ranging, data-hold and auto-power-off functions. Includes inductive coupler (IC) for fast reading of engine rpm. Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.

• 4-Digit 22mm, high-contrast LCD display and back light.
• Features auto-ranging, data-hold and auto-power-off functions.
• Includes inductive coupler for fast reading of engine rpm.
• Supplied with probe, crocodile clip and thermocouple leads for easy hook-up.
• Model No. TA201

Type	Digital automotive analyser
AC Current	400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
AC Voltage	400mV, 4V, 40V, 400V, 600V (Auto-Ranging, except 400mV)
Auto power off	Yes
Auto-Ranging	Yes
Back Light	Yes
Bar Graph Display	No
Batteries (supplied)	9V (PP3)
Capacitance	40nF, 400nF, 4µF, 40µF, 100µF (Auto-Ranging)
Continuity	<150O
DC Current	400µA, 4000µA, 40mA, 400mA, 4A, 10A (Auto-Ranging for µA & mA)
DC Voltage	400mV, 4V, 40V, 400V, 600V (Auto-Ranging)
Digits Height	22mm
Diode Check	Yes (Typical Test Current 0.3mA)
Display Hold	Yes
Duty Cycle	0.1-99.9%
Dwell	2Cyl 0-180°, 3Cyl 0-120°, 4Cyl 0-90°, 5Cyl 0-72°, 6Cyl 0-60°, 8Cyl 0-45°, 10Cyl 0-36°
Frequency	4V Range; 5Hz-10kHz, 40 & 400V Ranges; 5Hz-200kHz, 600V Range; 50Hz-1kHz, 400mA Range; 5Hz-5kHz, 10A Range; 5Hz-1kHz
Hi-Impact Case	Yes
Inductive Coupler	Yes
IR Temperature	No
Low Battery Indicator	Yes
Nett Weight	330g
PC Interface	No
Pulse Width	No
Resistance	400O, 4kO, 40kO, 400kO, 4MO, 40MO (Auto-Ranging)
Size (L x W x D)	146 x 66.2 x 41.5mm
Tach (rpm)	4-Stroke; 600-4000 (x1)rpm, 600-12000 (x10)rpm, 2-Stroke; 300-4000 (x1)rpm, 300-6000 (x10)rpm
Temperature	-20 to +760°C/-4 to +1400°F
Transistor Test	No
Weight	330g
