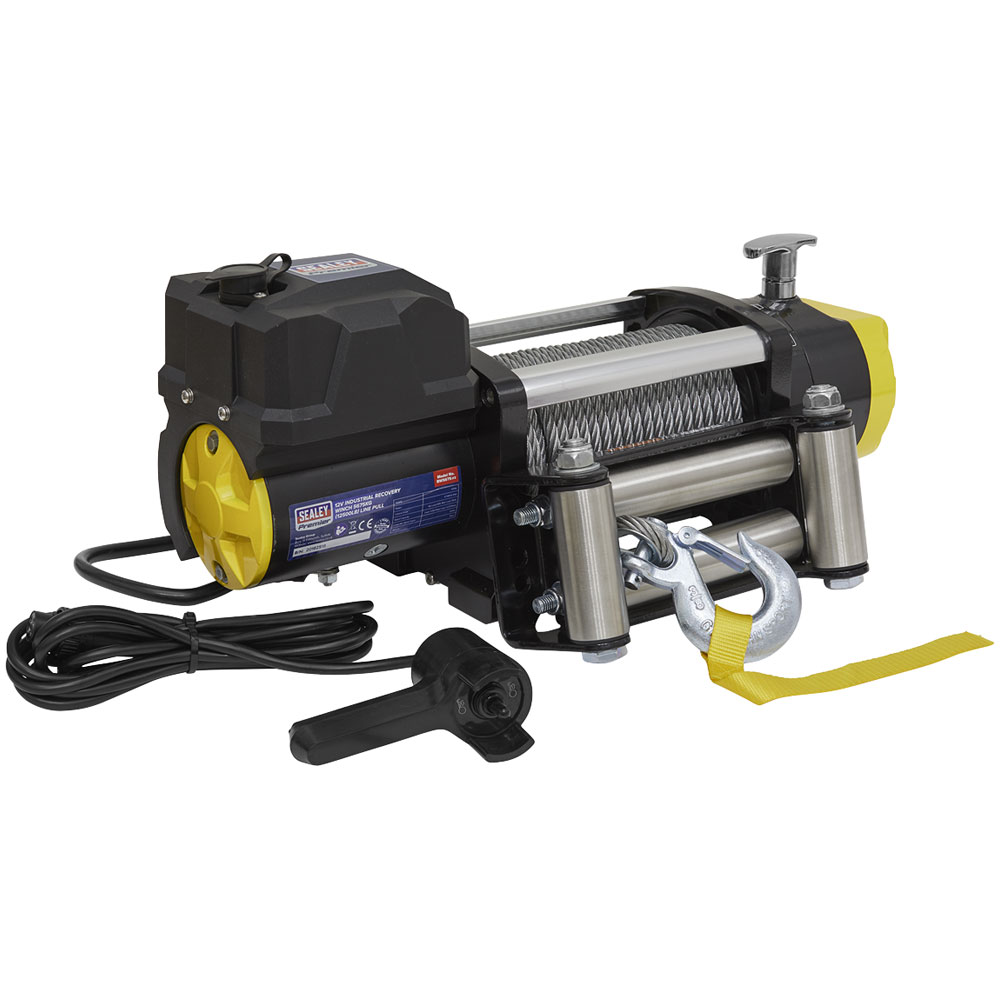

Sealey RW5675 Recovery Winch 5675kg (12500lb) Line Pull 12V Industrial

An all-metal chassis for long-life and low maintenance, suitable for industrial recovery and off-road use. Motor can easily be rotated 90° to meet various wiring and mounting requirements. A 6.4hp high power 4.7kW 12V DC motor with a permanent magnet gives first class pulling power. Innovative Double Lock load-holding brake design provides zero drag when pulling in. Ergonomic lift & turn free spool clutch. 4-Stage planetary gears. High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum. Heavy-duty all-weather housing and IP67 rated motor and gearbox.

• Suitable for industrial recovery and off-road use.
• All-metal chassis for long-life and low maintenance.
• Motor can easily be rotated 90° to meet various wiring and mounting requirements.
• A 6.4hp high power 4.7kW 12V DC motor with a permanent magnet gives first class pulling power.
• Innovative Double Lock load-holding brake design provides zero drag when pulling in.
• Ergonomic lift & turn free spool clutch.
• 4-Stage planetary gears.
• High quality wire rope feeds through 4-way roller fairlead for even distribution of cable onto drum.
• Heavy-duty all-weather housing gives IP67 rated motor and gearbox.
• 3 Year Guarantee*.
• Model No. RW5675

Type	Winch
Capacity	5675kg
Current Draw	No-Load - 50A, Maximum Load - 390A
Gear Ratio	171:1
Line Pull*	5675kg(12500lb)
Line Speed*	No Load - 15m/min, Maximum Load - 1m/min
Motor Power	4.7kW(6.4hp)
Nett Weight	41kg
Note	*Performance quoted at first layer of cable onto drum
Supply	12V
Wire Rope Diameter	9.2mm
Wire Rope Length	26m
