Professional diagnosis of battery and alternator faults with the added facility to print the results. Test battery condition with as little as 1V of residual charge. No heat, no sparks and no misdiagnosis. Checks condition of alternator, no complicated connections or interpretation required. Analyse the charging system at rest and under load to determine condition of the alternator. Connect and follow the prompts on the 2-line/16 character LCD screen for straightforward answers. Incorporates simple voltmeter for voltage tests and additional system diagnostics. Rugged construction. Supplied in storage case with two rolls of printing paper and instruction manual.
- Diagnosis of battery and alternator faults with the facility to print the results.
- Test battery condition with as little as 1V of residual charge.
- Checks condition of alternator, no complicated connections or interpretation required.
- Analyse the vehicle’s charging system at rest and under load to determine condition of the alternator.
- Voltmeter for voltage tests and additional system diagnostics.
- Test results shown on-screen and printed out at the end of the test.

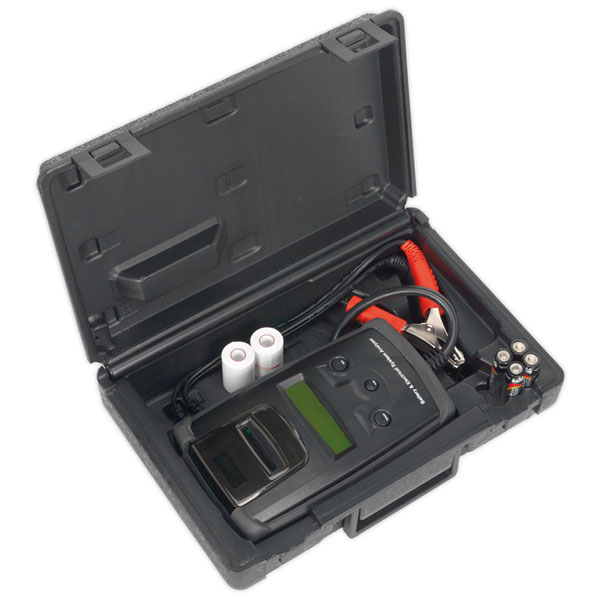

- Supplied in storage case with two rolls of printing paper.
- Full operating instructions also included.
- Model No. BT2003
| Model No | BT2003 |
| Battery: | 4 x AA (supplied) |
| Charging System Capability: | 12/24V |
| Consumable Parts: | BT2003.V2-01 - Printing Roll for BT2003, BT2013 Pack of 2 |
| Minimum Power Requirement: | 1V |
| Nett Weight: | 1.37Kg |
| Note: | *CCA - Cold Cranking Amps, **24V Alternator Test only |
| Rated Battery Voltage: | 6/12V |
| Rating Systems: | DIN, EN, IEC, JIS, SAE |
| Test Ranges: | 40-2100 CCA* EN, 40-2000 CCA* SAE, 30-1500 CCA* IEC, 25-1300 CCA* DIN, By Battery Type JIS |
| Voltage Range: | 1.5-30V |
| Type |
Battery tester |
| Battery |
4 x AA (not included) |
| Charging System Capability |
12/24V |
| Connection |
Alligator clips |
| Consumable Parts |
BT2003.V2-01 - Printing Roll for BT2003, BT2013 Pack of 2 |
| Minimum Power Requirement |
1V |
| Nett Weight |
1.37kg |
| Note |
*CCA - Cold Cranking Amps, **24V Alternator Test only |
| Rated Battery Voltage |
6/12V |
| Rating Systems |
DIN, EN, IEC, JIS, SAE |
| Test Ranges |
40-2100 CCA* EN, 40-2000 CCA* SAE, 30-1500 CCA* IEC, 25-1300 CCA* DIN, By Battery Type JIS |
| Test Ranges Test Ranges |
40-2100 CCA* EN, 40-2000 CCA* SAE, 30-1500 CCA* IEC, 25-1300 CCA* DIN, By Battery Type JIS |
| Voltage |
6 and 12V |
| Voltage Range |
1.5-30V |
