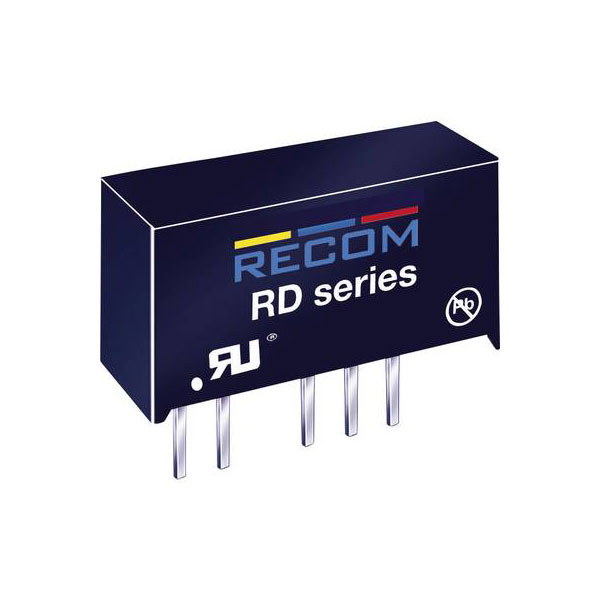

The Recom RD-1215D is a Dual Output 2W DC/DC Converter from the RD Series . This SIP 7 converter has been specifically designed for applications where dual power rails need to be created from a single rail supply and a low cost solution is required.
With efficiencies up to 85%, the full output power is available over the operating temperature range -40°C to +85°C and the converter can be used in ambient temperatures of up to +100°C with some derating. This converter is supplied with 1kVDC Isolation .
Input voltage: 12V DC Output voltage: Dual 15V DC Output power: 2W SIP 7 Package Material: UL94V-0 Operating Temperature from -40°C to +85°C Weight: 2.8g Efficiency: 82-86% Dimensions: 19.65(L) x 7.05(W)mm 1kVDC Isolation Type: DC-DC Converter RD Series Manufacturer's part: RD-1215D
Mounting Style
SIP-7
Number of Outputs
2
Output Voltage Min
-15V
Output Voltage Max
15V
Output Current Min
-66mA
Output Current Max
66mA
Power Rating
2W
Supply Voltage Range
12V
Temperature Range
-40 to +85°C
