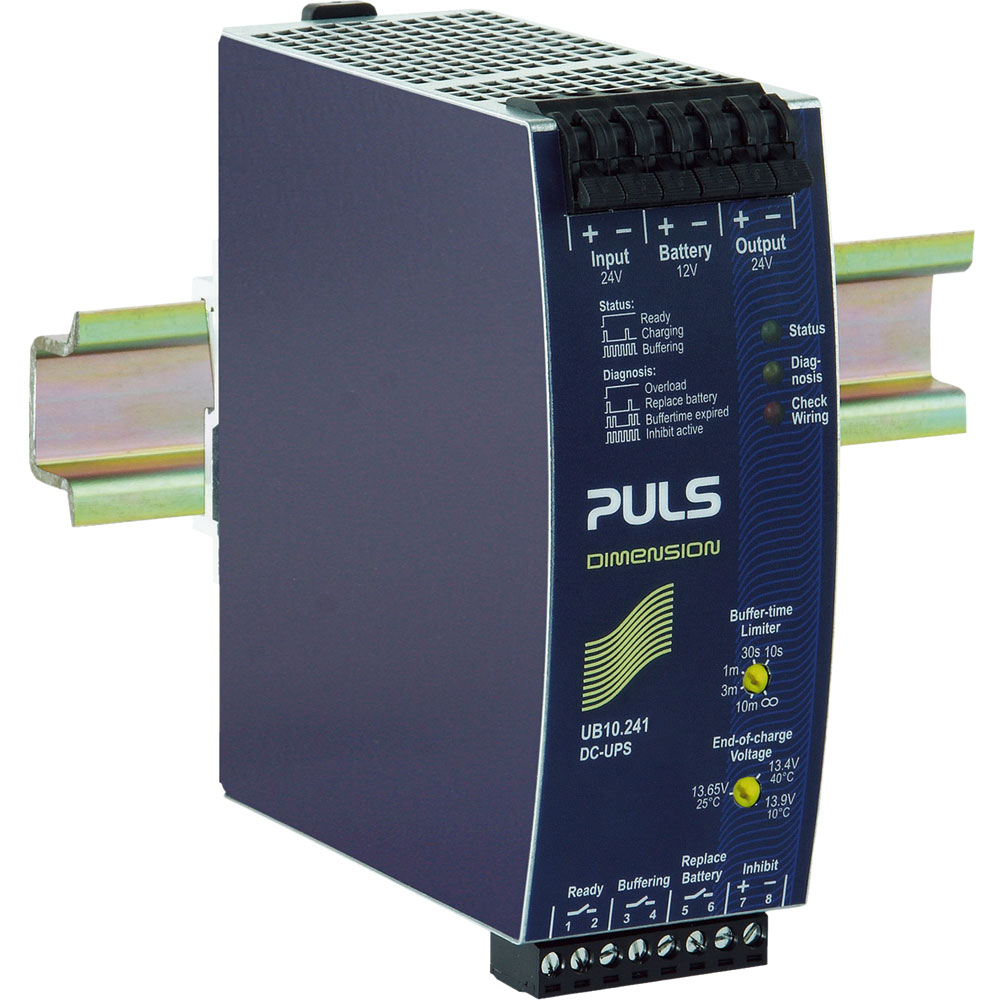

PULS UB10.241 DC USP Control Unit with Battery for 3.9-40Ah 24V DC 10A

MPN: UB10.241
Brand: PULS
EAN-13: 4016138425628
Order Code: 59-2675
Country of Origin: Czech Republic

Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£249.42
10+	£239.28

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Back order - 17 availableBack-order availability date - 03/10/2026

Product Details
Product Range

This control unit from PULS allows simple configuration of an uninterrupting current supply with 24V DC power supply (e.g.B. Pulse-DIMENSION series) and a UPS battery module. Equipped with diverse protection/service and monitoring functions for reliable and long operation of all integrated components.
Features include: worldwide access pack, one integrated 12V battery is enough for buffering of 24V DC, stable output voltage in buffer mode and adjustable buffer-time.

Battery management
Battery change signal
50% Power reserve
Dimensions 49 x 124 x 117mm
Output: 22.5V DC 10A 240W
Manufacturer's part UB10.241

Type	UPS switching module
Number of Outputs	2
Power Rating	240W
1st secondary output voltage	22.5V
2nd secondary output voltage	22.5V
3rd secondary output voltage	22.5V
Battery	management
Max. output current 1	10A
Max. output current 2	10A
Max. output current 3	10A
Nominal value output voltage 1	22.5V
Output	22.5V DC 10A 240W
Output Current	10
Output voltage stabilized	22.5V
Rated supply voltage AC 50 Hz	24V
Rated supply voltage AC 60 Hz	24V
Rated supply voltage DC	24V
Secondary voltage adjustable	12V
Voltage type (supply voltage)	24V
