PULS ML50.101 Mini Line Rail PSU 24V 2.1A 50W Compact DIN Mount

PULS
Standard range
Order Code:

10-3211

Brand: PULS MPN: ML50.101 EAN-13: 0875404000082
Qty Unit Price (Ex VAT)
1+ £85.61
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
3 in stock, despatched in 4 working days

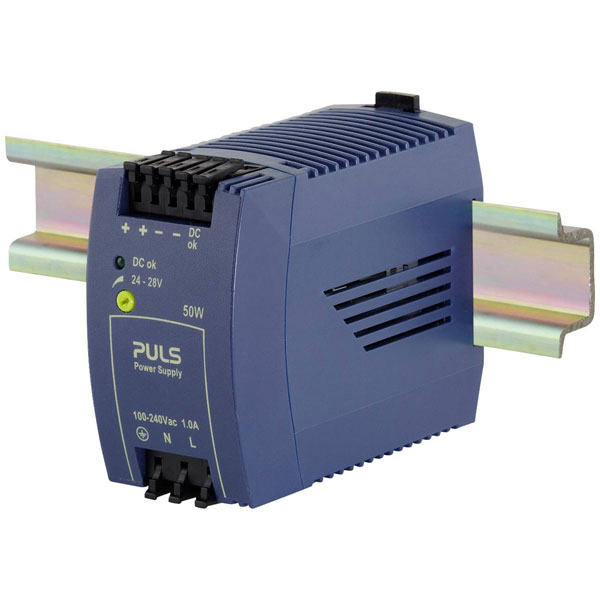

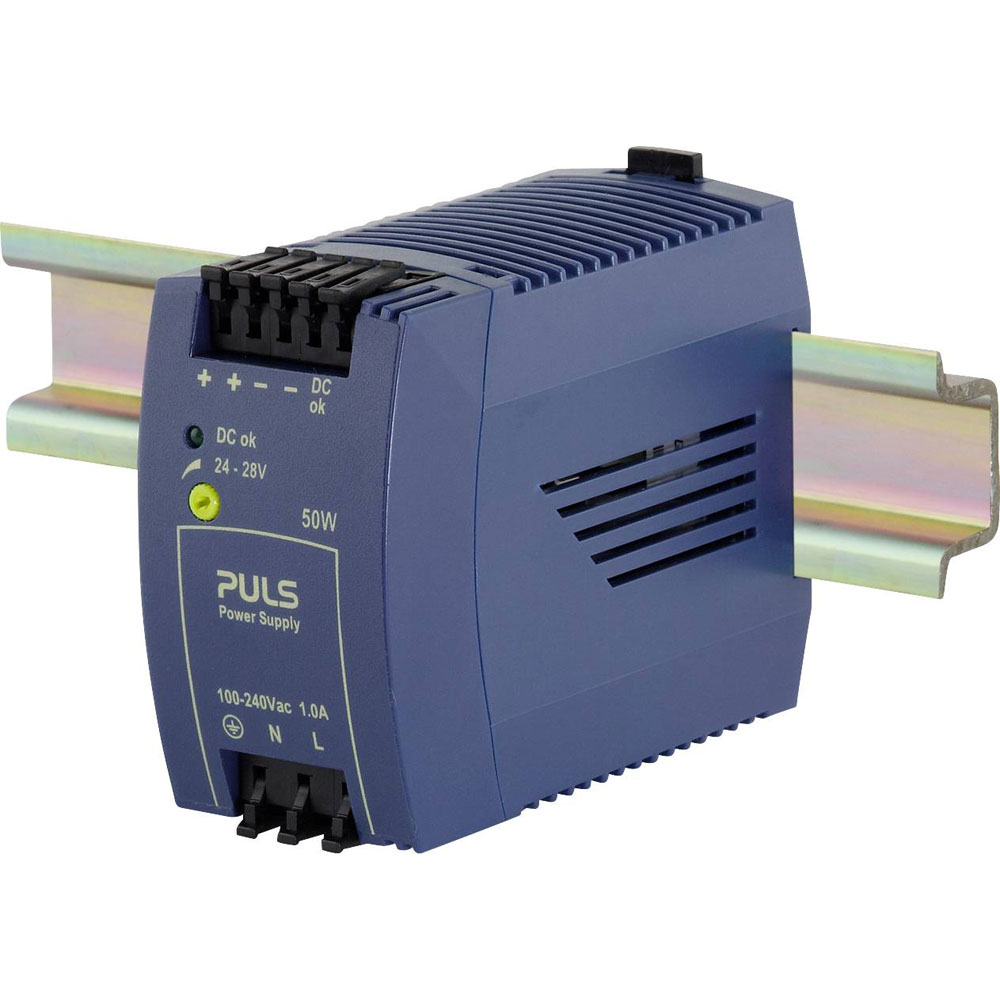

The PULS ML50.101 is a rail-mounted PSU (DIN) providing 24 V at 2.1 A with a total power output of 50 W and a single output. This industrial power supply unit is ideal for applications requiring a stable and efficient power source for DIN rail systems. It is commonly used in industrial and automation environments to ensure reliable power delivery.
Type Rail mounted PSU (DIN)
Connection Spring-loaded terminal
Dim (L x W x H) 91 x 45 x 75 mm
Efficiency 88.5%
Height 75mm
Input voltage AC 100-240V (-15%/+10%)
DC 110V-300V (-20%/+25%)
Input voltage (max.) 85V
Length 91mm
Manufacturer part # ML50.101
Max. operating temperature (derating) +60°C
Max. output current 2.1A
Max. temperature +70°C
Min. input voltage 264V
Min. temperature -10°C
Misc Attribute Puls
MTBF 600.000h
No. of outputs 1
Nominal input voltage 100 - 240 V/AC
Operating temperature (max.) +70°C
Operating temperature (min.) -10°C
Output current (max.) - rounded 2.1A
Output voltage (max.) 28V
Output voltage (min.) 24V
Output voltage (nominal) 24V
Phases 1
Power 50W
Weight 240g
Width 45mm
