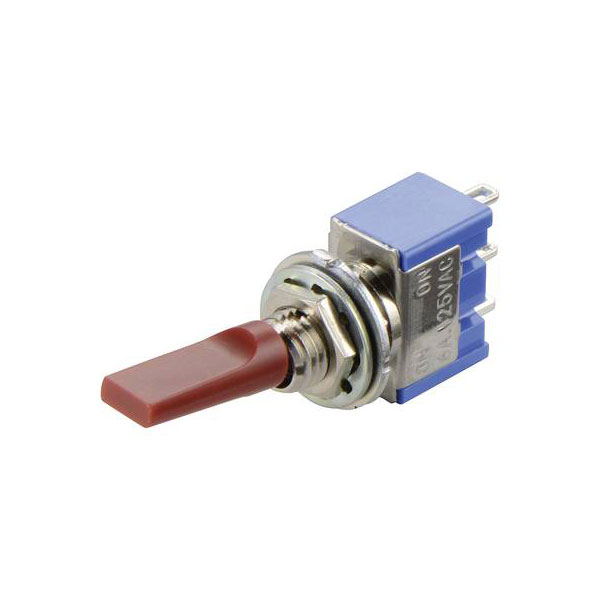

Miyama 700975 MS 500F-MF Toggle Switch 250V 3A On/On 1piece Flat Arm

The Miyama 700975 MS 500F-MF is a toggle switch rated for 250 V AC and 3 A. It features a compact design with dimensions of 13 x 12.5 x 9.5 mm and offers a 2-pole On/On configuration. Common applications include use in electronic devices requiring a reliable latch mechanism.

Contact Configuration	2 x On/On
Switch Function	latch
Current Rating (Amps)	3A
Actuator Type	Steel lever
Casing/button Colour	Silver
Dim	(L x W x H) 13 x 12.5 x 9.5 mm
Height	9.5mm
Length	13mm
Lighting Type	None
Misc Attribute 1	MS 500F-MF SILVER
Misc Attribute 2	2-pin On/On
Misc Attribute 3	MS 500F-MF
Number of pins	2
Pins	2
Recess Diameter	6.2mm
Switching Capacity	3 A/250 V/6 A/125 V
Switching Voltage	250V AC
Type	Toggle switch
Width	12.5mm
