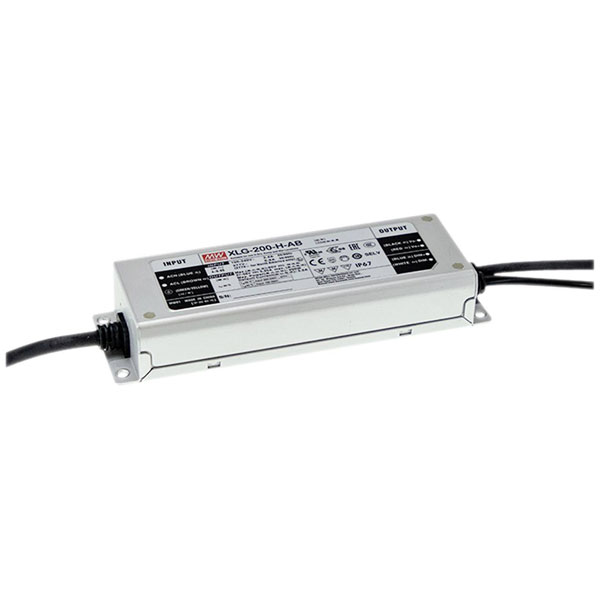

Mean Well XLG-200-H-A XLG-series LED driver 200W 27-56V outdoor use

Mean Well
Order Code:

05-1929

Brand: Mean Well MPN: XLG-200-H-A EAN-13: 4021087051576
Qty Unit Price (Ex VAT)
1+ £41.82
10+ £37.64
25+ £36.13
50+ £34.91
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
23 in stock, despatched in 4 working days

The Mean Well XLG-200-H-A LED driver, with a constant power of 200 W, supports an output between 3500 to 5550 mA and 27 to 56 V DC. It is suitable for outdoor use, approved for furniture, and equipped with a PFC circuit, adjustable settings, surge protection, and overvoltage capabilities. Typical applications include powering LED strips on flammable surfaces, ensuring safe and efficient lighting installations.
Type LED driver
Connection Open end cable
Dim (L x W x H) 199 x 63 x 35.5 mm
Factory colour Metal
Height 35.5mm
IP Rating IP67
Length 199mm
Max. output current 5550mA
Max. power 200W
Max. temperature +90°C
Min. temperature -40°C
Misc Attribute 1 Constant power
Misc Attribute 2 Pulsed
Number of Inputs 1
Number of Outputs 1
Output current (max.) - rounded 5.55A
Output current (min.) 3500mA
Output voltage (max.) 56V DC
Output voltage (min.) 27V DC
Power range 200 W (max)
Protection Class I
Test mark CE, CB, MM, ENEC, UL
Width 63mm
