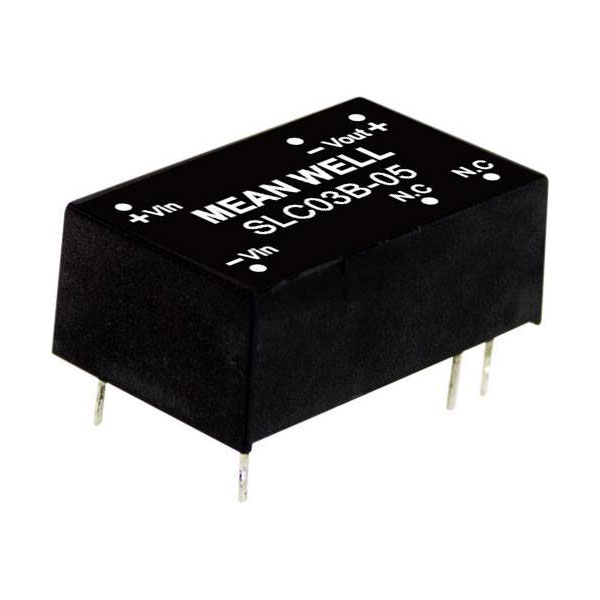

Mean Well SLC03B-05 SLC series DC/DC converter 600mA 3W 1 output

Mean Well
Order Code:

05-1783

Brand: Mean Well MPN: SLC03B-05 EAN-13: 4021087041263
Qty Unit Price (Ex VAT)
1+ £9.52
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well SLC03B-05 is a DC/DC converter module with a 600 mA current rating and a power output of 3 W. It features a single output and is suitable for applications requiring efficient voltage regulation and current rectification. Typical uses include powering electronic devices in industrial and communication systems.
Connection Pins
Dim (L x W x H) 22.1 x 13.8 x 8.55 mm
Efficiency (max.) 81%
Height 8.55mm
Input voltage (max.) 36V DC
Insulation Voltage 1500V DC
Length 22.1mm
Max. output current 600mA
Min. input voltage 18V DC
Number of Outputs 1
Operating temperature (max.) +85°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 600mA
Output voltage (max.) 5V DC
Power 3W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 13.8mm
