Mean Well Open & DIN Power Supply Units SMPSU 608246

Mean Well Brand: Mean Well
Mean Well produces a range of high-power, single output switch mode power supply units designed for efficiency and reliability.
Description Image Product Buy Pricing (Ex VAT) Max. output current Output current (max.) - rounded Output voltage (max.) Output voltage (min.) Power Connection Dim Height Length Misc Attribute 2 Misc Attribute 3 MTBF Number of Outputs Operating temperature (max.) Operating temperature (min.) PFC Type Width
Mean Well MSP-1000-12 SMPSU 14V DC 80A 960W Single Output Power Supply
Mean Well MSP-1000-12 SMPSU 14V DC 80A 960W Single Output Power Supply
Standard range
Order code: 05-1205
MPN: MSP-1000-12

Available to back orderBack-order availability date - 12/12/2025
1+ £225.59
Price per unit Ex VAT 		80A 80A 14V DC 11V DC 960W Screw terminal (L x W x H) 218 x 105 x 63.5 mm 63.5mm 218mm Pulsed closed 286300h 1 +70°C -40°C Yes SMPSU 105mm
Mean Well MSP-1000-15 SMPSU 17V DC 64A 960W switching power supply
Mean Well MSP-1000-15 SMPSU 17V DC 64A 960W switching power supply
Standard range
Order code: 05-1206
MPN: MSP-1000-15

Available to back orderBack-order availability date - 12/12/2025
1+ £254.54
5+ £246.65
10+ £239.02
25+ £229.08
50+ £221.45
Price per unit Ex VAT 		64A 64A 17V DC 14V DC 960W Screw terminal (L x W x H) 218 x 105 x 63.5 mm 63.5mm 218mm Pulsed closed 286300h 1 +70°C -40°C Yes SMPSU 105mm
Mean Well MSP-1000-24 SMPSU 28V DC 42A 1008W efficient power supply
Mean Well MSP-1000-24 SMPSU 28V DC 42A 1008W efficient power supply
Standard range
Order code: 05-1207
MPN: MSP-1000-24

Available to back orderBack-order availability date - 12/12/2025
1+ £248.98
5+ £241.50
10+ £234.04
25+ £226.56
50+ £219.09
Price per unit Ex VAT 		42A 42A 28V DC 22V DC 1008W Screw terminal (L x W x H) 218 x 105 x 63.5 mm 63.5mm 218mm Pulsed closed 286300h 1 +70°C -40°C Yes SMPSU 105mm

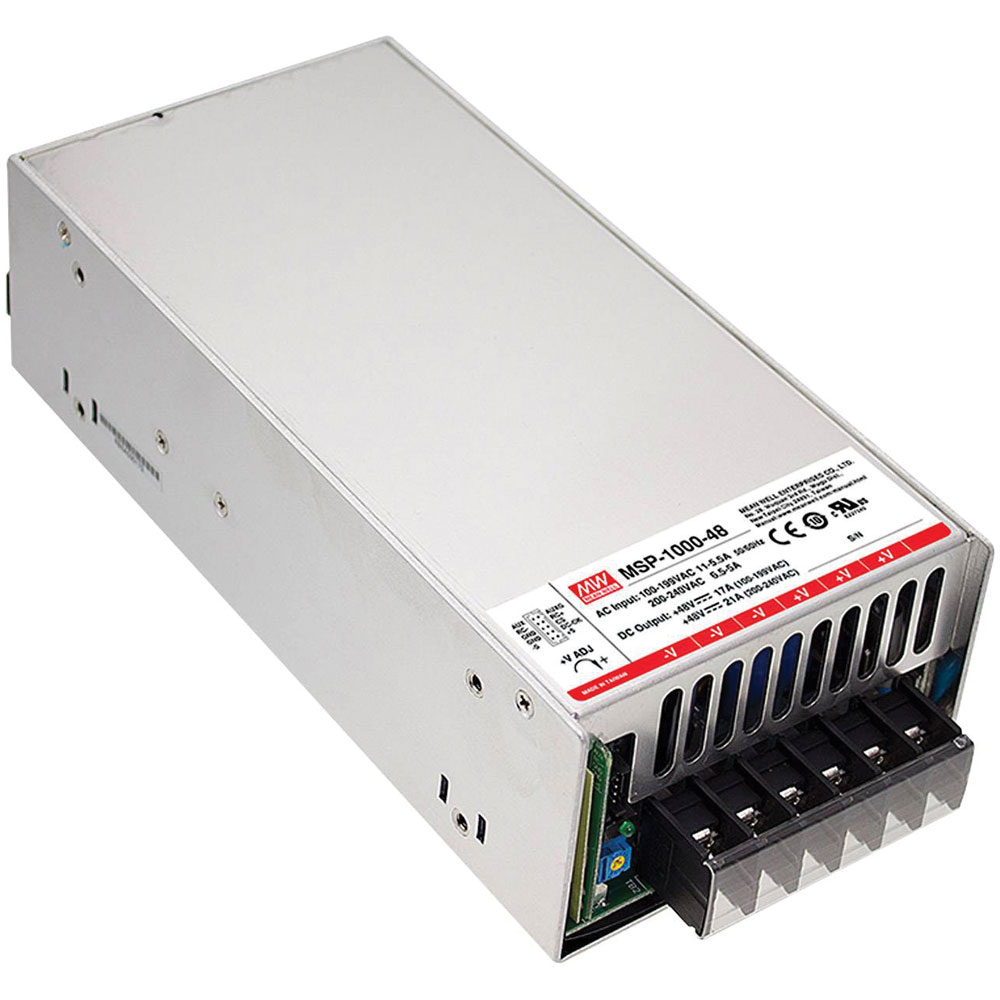

Mean Well MSP-1000-48 SMPSU 56V DC 21A 1008W 1pc reliable power supply
Mean Well MSP-1000-48 SMPSU 56V DC 21A 1008W 1pc reliable power supply
Standard range
Order code: 05-1208
MPN: MSP-1000-48

Available to back orderBack-order availability date - 12/12/2025
1+ £217.59
5+ £211.06
10+ £204.51
25+ £198.00
50+ £191.46
Price per unit Ex VAT 		21A 21A 56V DC 46V DC 1008W Screw terminal (L x W x H) 218 x 105 x 63.5 mm 63.5mm 218mm Pulsed closed 286300h 1 +70°C -40°C Yes SMPSU 105mm
