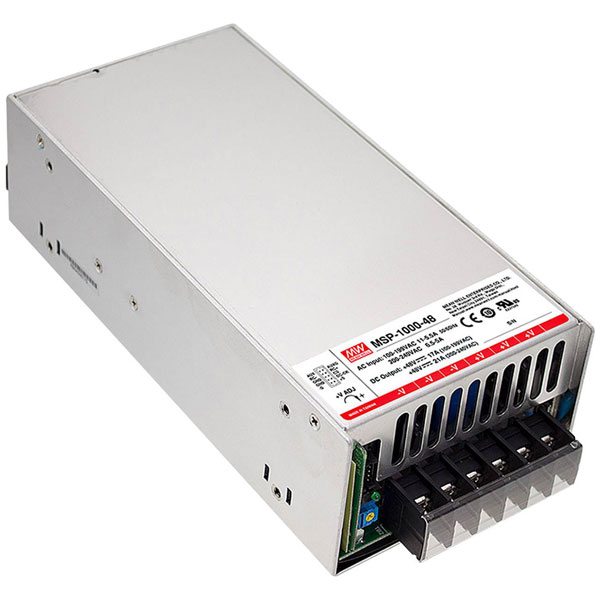

Mean Well MSP-1000-48 SMPSU 56V DC 21A 1008W 1pc reliable power supply

The Mean Well MSP-1000-48 is a switch-mode power supply unit (SMPSU) designed for printed circuit boards. It delivers a power output of 1008 watts with a voltage of 48 V DC and a current rating of 21 A, featuring screw terminals for secure connections. This PSU is ideal for industrial applications requiring robust and reliable power management.

Output Voltage	46V DC
Output Current	21A
Power Rating	1008W
Number of Outputs	1
Input Voltage	180-264VAC
Connection	Screw terminal
Dimensions	(L x W x H) 218 x 105 x 63.5 mm
Height	63.5mm
Length	218mm
Maximum Operating Temperature	+70°C
Misc Attribute 2	Pulsed
Misc Attribute 3	closed
MTBF	286300h
Operating temperature (min.)	-40°C
PFC	Yes
Type	SMPSU
Weight	1530g
Width	105mm
