Mean Well Open & DIN Power Supply Units Rail mounted PSU (DIN) 608300

Mean Well Brand: Mean Well
Mean Well produces a range of DIN rail power supply units designed for various applications, featuring multiple voltage outputs, overload protection, and enclosed cases.
Description Image Product Buy Qty Pricing (Ex VAT) Dim Height Length Manufacturer part # Max. output current Min. input voltage Misc Attribute 2 Output current (details) Output current (max.) - rounded Output Voltage Output voltage (max.) Output voltage (nominal) Power Weight Type Connection Input voltage (max.) Misc Attribute 1 No. of inputs No. of outputs
Mean Well SDR-120-48 PSU DIN Rail 48V DC 2.5A 120W 1 Output Enclosed Case
Mean Well SDR-120-48 PSU DIN Rail 48V DC 2.5A 120W 1 Output Enclosed Case
Standard range
Order code: 05-1698
MPN: SDR-120-48

26 in Stock, despatched in 4 days
1+ £109.54
(L x W x H) 40.00 x 125.20 x 113.50 mm 113.50mm 40.00mm SDR-120-48 2.5A 90V AC SDR-120-48 2.5 A 2.5A 48 V/DC 48V DC 48V DC 120W 720.00g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
Mean Well SDR-240-48 rail PSU 48VDC 5A 240W DIN-rail mount aluminium case
Mean Well SDR-240-48 rail PSU 48VDC 5A 240W DIN-rail mount aluminium case
Standard range
Order code: 05-1700
MPN: SDR-240-48

51 in Stock, despatched in 4 days
1+ £179.80
(L x W x H) 63.50 x 125.20 x 113.50 mm 113.50mm 63.50mm SDR-240-48 5A 90V AC SDR-240-48 5 A 5A 48 V/DC 48V DC 48V DC 240W 1033.33g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
Mean Well SDR-480-48 rail PSU 48V 10A 480W DIN rail mount universal input
Mean Well SDR-480-48 rail PSU 48V 10A 480W DIN rail mount universal input
Standard range
Order code: 05-1702
MPN: SDR-480-48

21 in Stock, despatched in 4 days
1+ £289.23
(L x W x H) 85.50 x 125.20 x 128.50 mm 128.50mm 85.50mm SDR-480-48 10A 90V AC SDR-480-48 10 A 10A 48 V/DC 48V DC 48V DC 480W 1725.00g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1

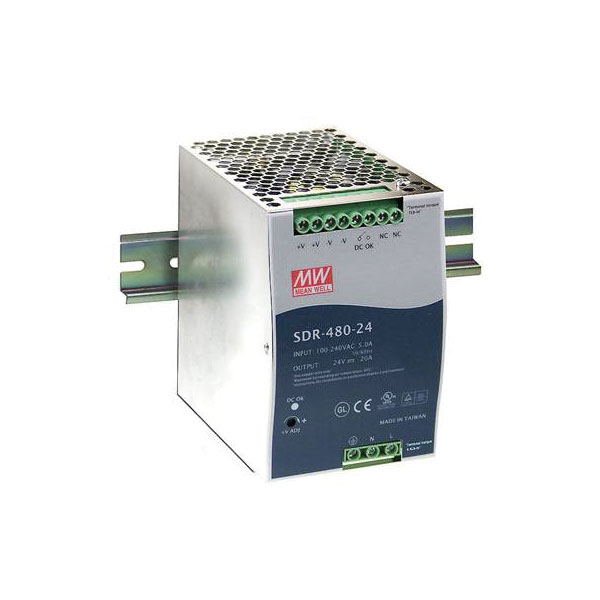

Mean Well SDR-480P-24 power supply 24V DC 20A 480W DIN rail mount
Mean Well SDR-480P-24 power supply 24V DC 20A 480W DIN rail mount
Standard range
Order code: 05-1703
MPN: SDR-480P-24

21 in Stock, despatched in 4 days
1+ £236.35
(L x W x H) 85.50 x 125.20 x 128.50 mm 128.50mm 85.50mm SDR-480P-24 20A 90V AC SDR-480P-24 20 A 20A 24 VDC 24V DC 24V DC 480W 1725.00g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
Mean Well SDR-480P-48 rail PSU 48V DC 10A DIN mount overload protection
Mean Well SDR-480P-48 rail PSU 48V DC 10A DIN mount overload protection
Standard range
Order code: 05-1704
MPN: SDR-480P-48

15 in Stock, despatched in 4 days
1+ £205.42
(L x W x H) 85.50 x 125.20 x 128.50 mm 128.50mm 85.50mm SDR-480P-48 10A 90V AC SDR-480P-48 10 A 10A 48 V/DC 48V DC 48V DC 480W 1725.00g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
Mean Well SDR-75-48 DIN rail PSU 48V 1.6A 76W single output overload protection
Mean Well SDR-75-48 DIN rail PSU 48V 1.6A 76W single output overload protection
Standard range
Order code: 05-1707
MPN: SDR-75-48

8 in Stock, despatched in 4 days
1+ £35.27
(L x W x H) 32.00 x 125.20 x 102.00 mm 102.00mm 32.00mm SDR-75-48 1.6A 90V AC SDR-75-48 1.6 A 1.6A 48 V/DC 48V DC 48V DC 76W 510.71g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
Mean Well SDR-960-48 48V 20A DIN rail PSU overload PFC 1 output
Mean Well SDR-960-48 48V 20A DIN rail PSU overload PFC 1 output
Standard range
Order code: 05-1709
MPN: SDR-960-48

34 in Stock, despatched in 4 days
1+ £436.84
(L x W x H) 110.00 x 125.20 x 150.00 mm 150.00mm 110.00mm SDR-960-48 20A 180V AC SDR-960-48 20 A 20A 48 V/DC 48V DC 48V DC 960W 2466.67g Rail mounted PSU (DIN) Screw terminal 264V AC Synchronised 1 1
