Mean Well Open & DIN Power Supply Units AC/DC PSU (print) 608221

Mean Well Brand: Mean Well
The Mean Well MPM series consists of AC/DC power supply units designed for medical applications, featuring varying voltage and current ratings, compact form factors, and medical-grade specifications.
Description Image Product Buy Pricing (Ex VAT) Output Voltage Output Current Dimensions Connection Height Length Max. output current Residual ripple Width Number of Outputs Mounting Type Efficiency to Input frequency Input Voltage Insulation Voltage Min. input voltage Misc Attribute 2 Misc Attribute 3 Operating temperature (max.) Operating temperature (min.)
Mean Well MPM-30-12 MPM series AC/DC PSU 12V 2.5A compact for medical use
Mean Well MPM-30-12 MPM series AC/DC PSU 12V 2.5A compact for medical use
Standard range
Order code: 05-1177
MPN: MPM-30-12

Available to back orderBack-order availability date - 12/04/2026
1+ £15.98
Price per unit Ex VAT 		12V DC 2.5A (L x W x H) 69.5 x 39 x 24 mm 24mm 69.5mm 2.5A 120 mVp-p 39mm 1 PCB 90% 47-63Hz 264V AC 4000V AC 80V AC Pulsed 1 85°C -40°C
Mean Well MPM-30-12ST MPM AC/DC PSU 12V DC 2.5A medical grade low idle power
Mean Well MPM-30-12ST MPM AC/DC PSU 12V DC 2.5A medical grade low idle power
Standard range
Order code: 05-1178
MPN: MPM-30-12ST

Available to back orderBack-order availability date - 12/04/2026
1+ £24.23
5+ £23.47
10+ £22.80
25+ £21.80
50+ £21.10
Price per unit Ex VAT 		12V DC 2.5A (L x W x H) 91 x 39.5 x 28.5 mm Screw terminal 28.5mm 91mm 2.5A 120 mVp-p 39.5mm 1 PCB 90% 47-63Hz 264V AC 4000V AC 80V AC Pulsed 1 85°C -40°C

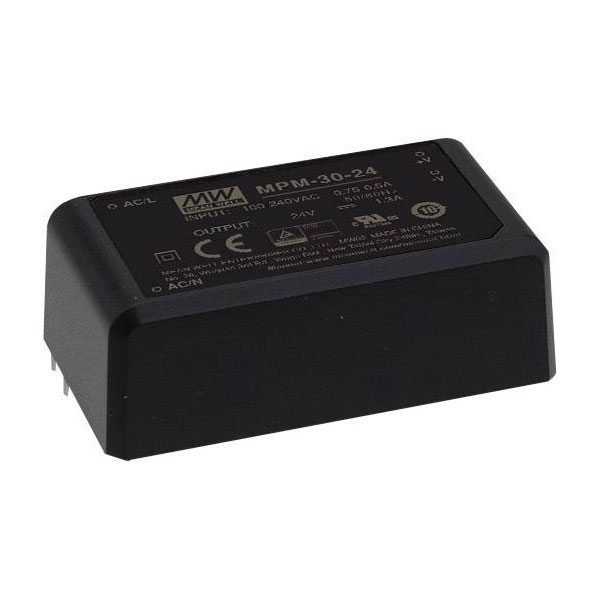

Mean Well MPM-30-24 MPM series AC/DC PSU 24V 1.3A medical grade PCB mount
Mean Well MPM-30-24 MPM series AC/DC PSU 24V 1.3A medical grade PCB mount
Standard range
Order code: 05-1179
MPN: MPM-30-24

Available to back orderBack-order availability date - 12/04/2026
1+ £17.13
5+ £16.62
Price per unit Ex VAT 		24V DC 1.3A (L x W x H) 69.5 x 39 x 24 mm 24mm 69.5mm 1.3A 200 mVp-p 39mm 1 PCB 90% 47-63Hz 264V AC 4000V AC 80V AC Pulsed 1 85°C -40°C
Mean Well MPM-30-24ST AC/DC PSU 24V DC 1.3A medical grade low power
Mean Well MPM-30-24ST AC/DC PSU 24V DC 1.3A medical grade low power
Standard range
Order code: 05-1180
MPN: MPM-30-24ST

Available to back orderBack-order availability date - 12/04/2026
1+ £24.23
5+ £23.49
10+ £22.80
25+ £21.80
50+ £21.10
Price per unit Ex VAT 		24V DC 1.3A (L x W x H) 91 x 39.5 x 28.5 mm Screw terminal 28.5mm 91mm 1.3A 200 mVp-p 39.5mm 1 PCB 90% 47-63Hz 264V AC 4000V AC 80V AC Pulsed 1 85°C -40°C
