Mean Well IRM-01-3.3 AC/DC PSU 3.3V 300mA 1W compact low power turnkey

Mean Well
Order Code:

05-0909

Brand: Mean Well MPN: IRM-01-3.3 EAN-13: 4021087034807
Qty Unit Price (Ex VAT)
1+ £5.85
5+ £5.67
10+ £5.48
25+ £5.32
50+ £5.14
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 8 weeks

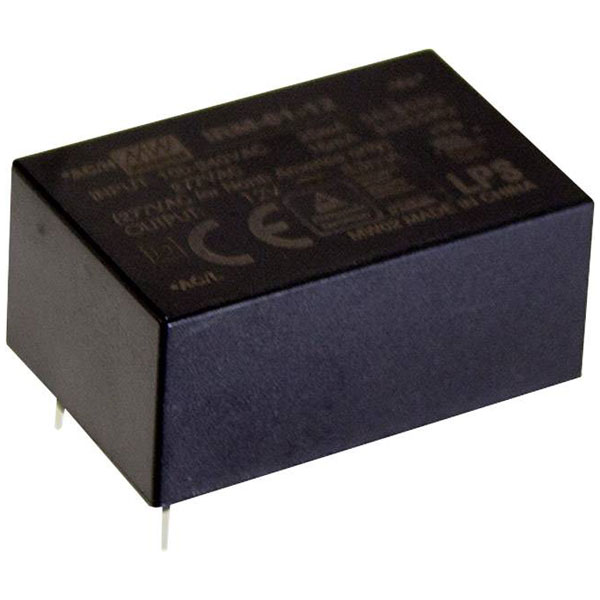

The Mean Well IRM-01-3.3 is an AC/DC power supply unit designed for printed circuit boards, providing a stable 3.3 V DC output with a current rating of 300 mA and a power output of 1 W. It features pins for PCB mounting, ideal for compact and efficient power supply solutions in various electronic applications. Commonly used in industrial and consumer electronics, this unit delivers reliable performance with easy integration into circuits.
Connection Pins
Consumption (standby) 75mW
Dim (L x W x H) 33.7 x 22.2 x 15 mm
Efficiency to 66%
Height 15mm
Input Frequency 47-63Hz
Input voltage (max.) 305V AC
Length 33.7mm
Max. output current 300mA
Min. input voltage 85V AC
Number of Outputs 1
Operating Temperature -30°C to +85°C
Operating temperature (max.) +85°C
Operating temperature (min.) -30°C
Output current (max.) - rounded 300mA
Output voltage (max.) 3.3V DC
Power 1W
Protection Class II
Residual ripple 150 mVp-p
Tolerance (output voltage) ±2.5%
Type AC/DC PSU (print)
Width 22.2mm
