Mean Well HLG-120H-24B LED driver: 120W dimmable surge protection

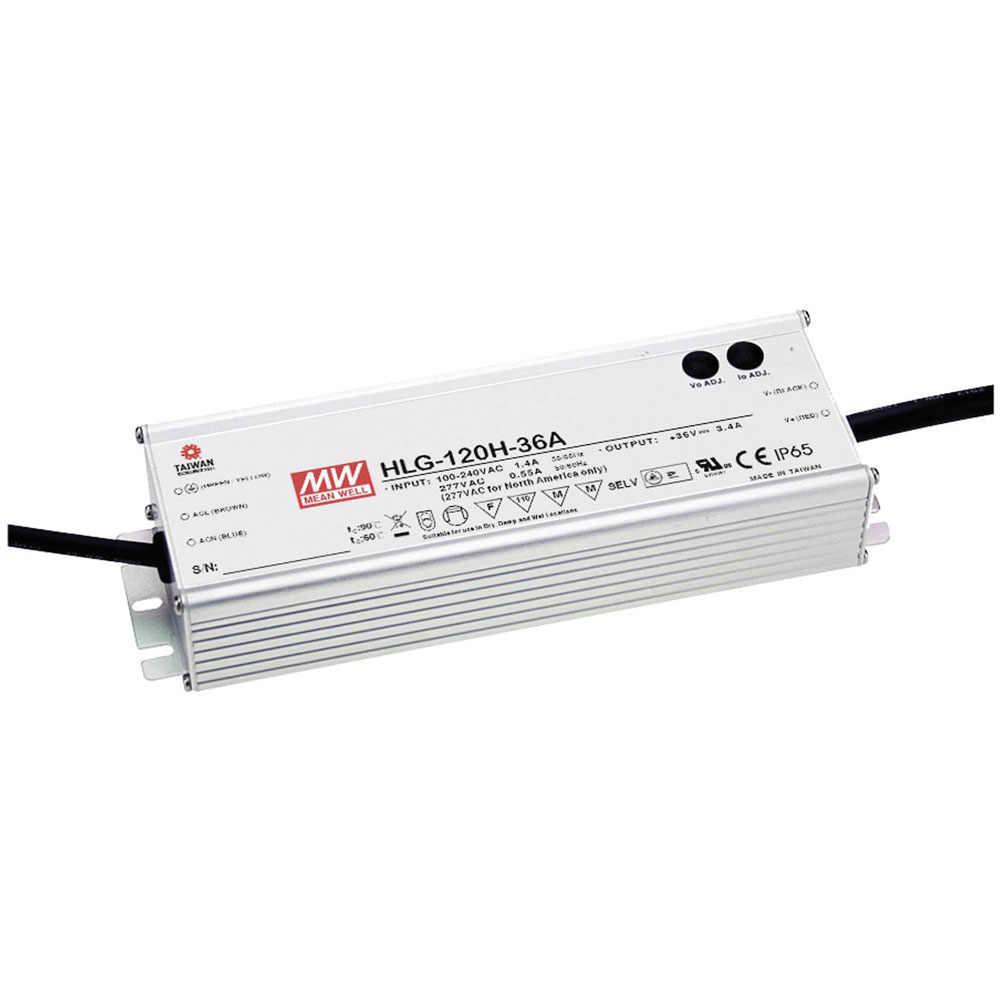

Image Representative of Range

Mean Well HLG-120H-24B LED driver: 120W dimmable surge protection

Mean Well
Standard range
Order Code:

05-0779

Brand: Mean Well MPN: HLG-120H-24B
Qty Unit Price (Ex VAT)
1+ £45.69
5+ £41.11
10+ £39.28
25+ £37.92
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
28 in stock, despatched in 4 working days

The Mean Well HLG-120H-24B is a dimmable LED driver providing 120 W power with a constant voltage of 12 to 24 V DC and a constant current of 5 A. It features a PFC circuit and surge protection, making it suitable for powering LED strips and other LED applications. The unit is ideal for both indoor and outdoor use, ensuring efficient energy conversion and reliable operation.
Type LED driver
Connection Open end cable
Dim (L x W x H) 220.00 x 68.00 x 38.80 mm
Height 38.80mm
Input voltage (max.) 305V AC
IP rating IP67
Length 220.00mm
Max. output current 5A
Max. power 120W
Min. input voltage 90V AC
Misc Attribute Synchronised
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 5A
Output voltage (max.) 24V DC
Output voltage (min.) 12V DC
Power range 120 W (max)
Protection class I
Weight 1116.67g
Width 68.00mm
