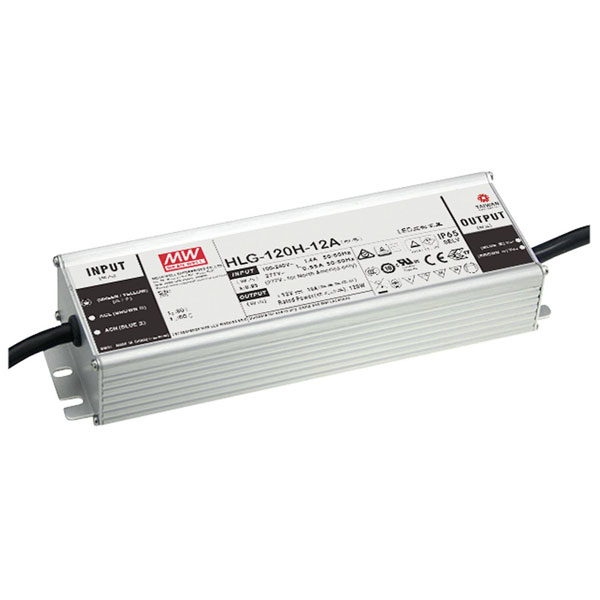

Mean Well HLG-120H-12AB LED driver 120W dimmable outdoor surge protection

Mean Well
Order Code:

05-0775

Brand: Mean Well MPN: HLG-120H-12AB EAN-13: 4021087049559
Qty Unit Price (Ex VAT)
1+ £52.28
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack order, lead time 10 days

The Mean Well HLG-120H-12AB is a dimmable LED driver with a constant voltage output of 120 W and adjustable current between 5 - 10 A, suitable for outdoor use. It features a 3-in-1 dimmer, PFC circuit, surge protection, and is approved for installation on flammable surfaces and furniture. This robust and efficient driver is ideal for powering LED strips in various lighting applications.
Type LED driver
Output Voltage 10.8V DC
Max Output Power 120W
Output Current 120 W (max)
Colour Metal
Connection Open end cable
Dimensions (L x W x H) 220 x 68 x 38.8 mm
Height 38.8mm
IP Rating IP65
Length 220mm
Max. output current 10A
Max. power 120W
Max. temperature +80°C
Maximum Temperature +80°C
Min. temperature -40°C
Minimum Temperature -40°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Pulsed
No. of Inputs 1
No. of outputs 1
Number of Inputs 1
Number of Outputs 1
Protection Class I
Test mark MM, SELV, UL, TÜV, CB
Width 68mm
