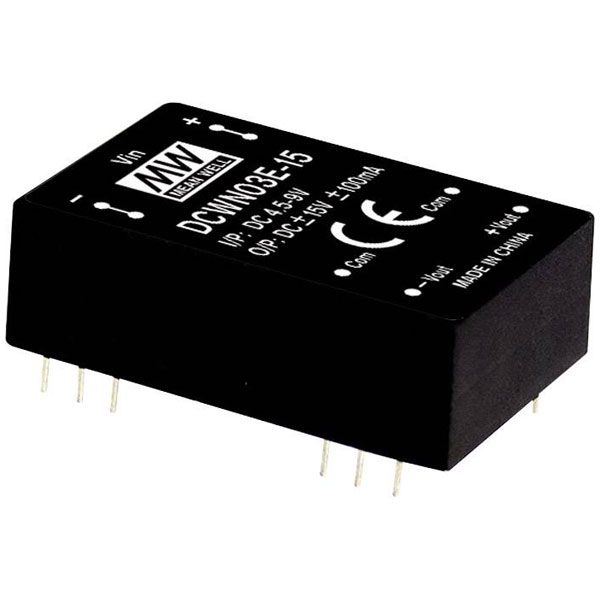

Mean Well DCWN03C-15 DCWN03 series 3W 100mA 3kV I/O 2 outputs DIP24

Mean Well
Order Code:

05-0253

Brand: Mean Well MPN: DCWN03C-15 EAN-13: 4021087046886
Qty Unit Price (Ex VAT)
1+ £10.96
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderBack-order availability date - 12/12/2025

The Mean Well DCWN03C-15 is a DC/DC converter module capable of delivering 3 W of power with a current rating of 100 mA and provides two outputs. It is designed for applications requiring reliable voltage conversion in compact spaces. Typical uses include powering electronic devices and systems needing isolated dual outputs with stable performance.
Connection Pins
Dim (L x W x H) 31.8 x 20.3 x 10.2 mm
Efficiency (max.) 87%
Height 10.2mm
Input voltage (max.) 72V DC
Insulation Voltage 3000V DC
Length 31.8mm
Max. output current 100mA
Min. input voltage 36V DC
Number of Outputs 2
Operating temperature (max.) +90°C
Operating temperature (min.) -40°C
Output current (max.) - rounded 100mA
Power 3W
PSU features DC-to-DC converter
Type DC/DC converter (module)
Width 20.3mm
