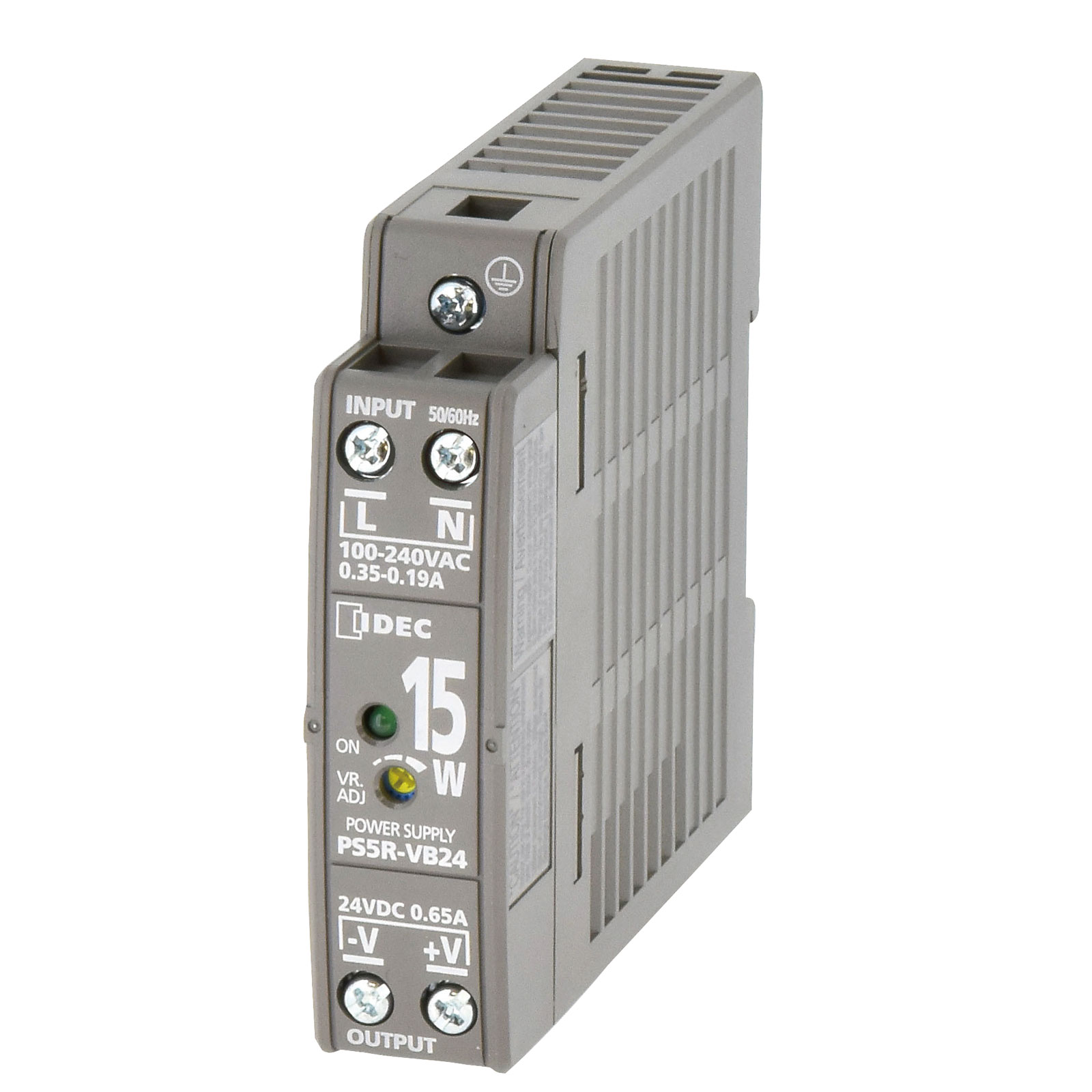

The IDEC PS5R-VB24 is a compact DIN rail power supply designed to deliver reliable 24V DC output with a 15W power rating. Its slim 22.5mm-wide space-saving design makes it ideal for use in tight or complex panel layouts, while the innovative screw-up terminal structure simplifies wiring and reduces installation time. The unit accepts a wide 100–240V AC input range and can be mounted in six different orientations, providing flexibility for a variety of control panel layouts.
Built for industrial environments, the PS5R-VB24 meets major international safety and EMC standards, including CE compliance, EN61204-3 Class B EMC requirements. With a robust design, it is ideal for factory automation systems, machinery control panels, process control equipment, material handling systems, and other industrial applications requiring a dependable 24V DC power source.
- Compact Din Rail PSU
- Screw terminals, for quick connection of ring terminals
- Slim design power supplies with width of 22.5mm
- Mounting possible in 6 directions
- Direct mounting on panels, using direct mounting brackets
- CE marking compliant. (Low Voltage Directive, EMC Directive, RoHS Directive)
- UL (UL508, UL1310 Class 2 ANSI/ISA 12.12.01), c-UL (CSA C22.2 No.107.1, 213, 223), TUV SUD (EN60950-1, EN50178) certified
- Compliant with EN61204-3 (DC power supply EMC standard Class B)
- Warranty period: 5 years
| Type |
PS5R-V Series |
| Number of Outputs |
1 |
| Power Rating |
15W |
| 1st secondary output voltage |
24V |
| 2nd secondary output voltage |
24V |
| 3rd secondary output voltage |
24V |
| Built-in width |
22.5mm |
| Content |
1 |
| Depth |
95mm |
| Dimensions (L x W x H) |
95 x 22.5 x 90mm |
| Height |
90mm |
| Input Voltage |
85-264 V AC/100-370 V DCV |
| Inputs |
1 |
| IP Rating |
IP20 |
| Max. output current 1 |
0.65A |
| Nominal value output voltage 1 [DC] |
24V |
| Nominal value output voltage 2 |
24V |
| Nominal value output voltage 3 |
24V |
| Operating Temperature |
-25 to +75°C |
| Output Current |
650mA |
| Output voltage stabilized |
24V |
| Product Type |
Rail mounted PSU (DIN) |
| Rated supply voltage AC 60 Hz |
24V |
| Rated supply voltage DC |
24V |
| Voltage type (supply voltage) |
24V |
| Warranty |
5Year |
| Weight |
140g |
| Width |
22.5mm |
