H-Tronic 1190085 PSU 12V DC 0.4A Compact Short-Circuit Protection

H-Tronic
Order Code:

09-4350

Brand: H-Tronic MPN: 1190085 EAN-13: 4260003173477
Qty Unit Price (Ex VAT)
1+ £6.87
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
196 in stock, despatched in 4 working days

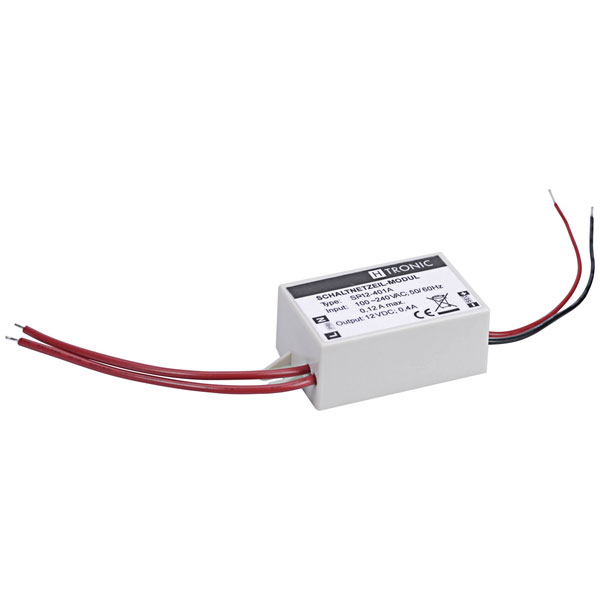

The H-Tronic SP-12-401 A is an AC/DC power supply unit delivering 12 V DC at 0.4 A with a power output of 4.8 W. It is a PCB mount unit equipped with solder lugs, making it suitable for printed circuit board applications. Typical uses include powering small electronic devices and projects requiring reliable DC power conversion.
Connection Solder pins
Dim (L x W x H) 52.4 x 33.4 x 22 mm
Efficiency to 78%
Height 22mm
Input Frequency 50 / 60Hz
Input voltage (max.) 240V AC
Length 52.4mm
Max. output current 0.4A
Min. input voltage 100V AC
Misc Attribute 1 Switched-mode power supply module
Misc Attribute 2 SP-12-401 A
Output current (details) 0.4A
Output current (max.) - rounded 400mA
Output Current 1 0.4A
Output voltage (max.) 12V DC
Output Voltage 1 12V DC
Power 4.8W
Protection Class IP20
Type AC/DC PSU (print)
Width 33.4mm
