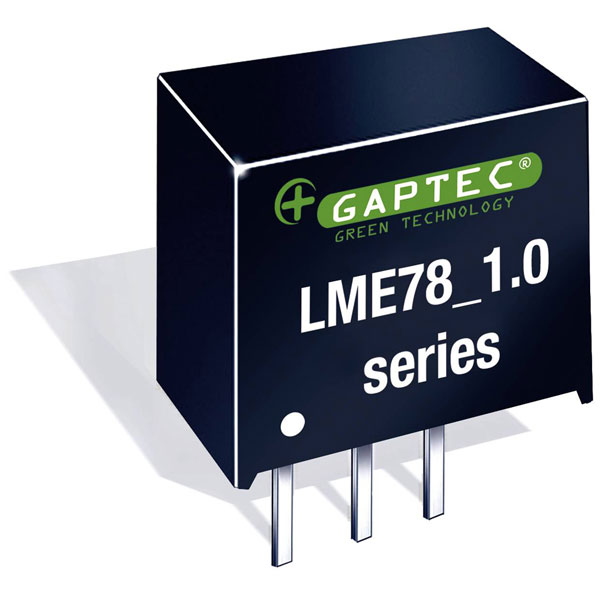

Gaptec LME78_05-1.0 DC/DC converter 1 A light compact design

Gaptec LME78_05-1.0 is a compact direct current (DC) to direct current (DC) converter designed to deliver high efficiency power conversion in light and space-constrained applications. This 1-ampere converter is ideal for applications requiring a stable and reliable power supply across varying input voltages, making it suitable for use in telecommunications equipment, industrial control systems, and instrumentation devices. It features an optimised design that facilitates seamless integration into printed circuit boards, serving as a dependable current rectifier within diverse electronic systems. The robust construction and efficient energy transfer characteristics contribute to its suitability for environments where precision and reliability are paramount. This single-unit component exemplifies the quality and performance synonymous with Gaptec range of DC-DC converters.

Content	1
Dimensions	(L x W x H) 11.6 x 8.0 x 10.4 mm
Efficiency	95%
Enclosure	SIP 3
Height	10.4mm
Length	11.6mm
Max. operating temperature (derating)	85°C
Max. output current	1A
Maximum Input Volage	36V DC
Maximum Operating Temperature	85°C
Min. operating temperature (derating)	-40°C
Minimum Input Volage	8V DC
Operating temperature (min.)	-40°C
Output current (max.) - rounded	1A
Output voltage (max.)	5V DC
Product Type	DC/DC converter
Type	LME78_1.0
Weight	1.9g
Width	8.0mm
