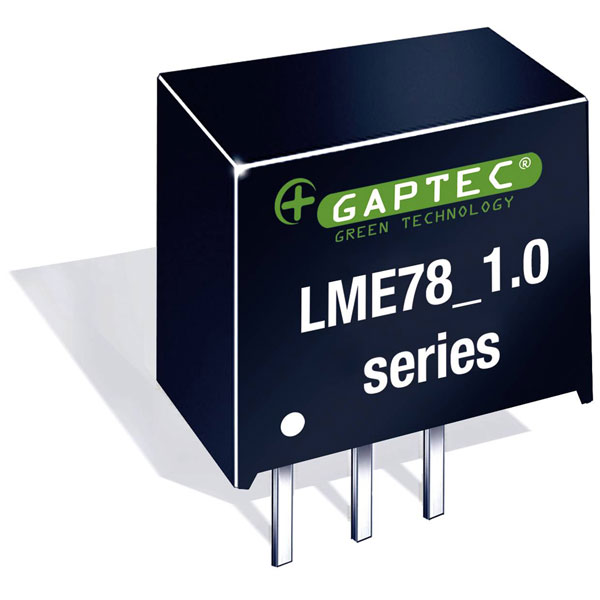

Gaptec LME78_03-1.0 DC/DC converter 1A DC-DC converters

Gaptec LME78_03-1.0 is a compact and efficient DC-DC converter designed to provide reliable direct current conversion for various electronic applications. This converter supports an output current of up to 1 ampere, making it suitable for low-power needs where stable voltage regulation is critical. Its versatile design allows it to be integrated into circuit boards, serving applications such as telecommunications, industrial automation, and distributed power systems. The LME78_03-1.0 is engineered for precision, ensuring minimal ripple and noise, which is essential in sensitive electronic environments. As a vital component in power management, it enhances the efficiency and performance of circuits requiring consistent power supply from varying input voltages.

Content	1
Dimensions	(L x W x H) 11.6 x 8.0 x 10.4 mm
Efficiency	90%
Enclosure	SIP 3
Height	10.4mm
Length	11.6mm
Max. operating temperature (derating)	85°C
Max. output current	1A
Maximum Input Volage	36V DC
Maximum Operating Temperature	85°C
Min. operating temperature (derating)	-40°C
Minimum Input Volage	6V DC
Operating temperature (min.)	-40°C
Output current (max.) - rounded	1A
Output voltage (max.)	3.3V DC
Product Type	DC/DC converter
Type	LME78_1.0
Weight	1.9g
Width	8.0mm
