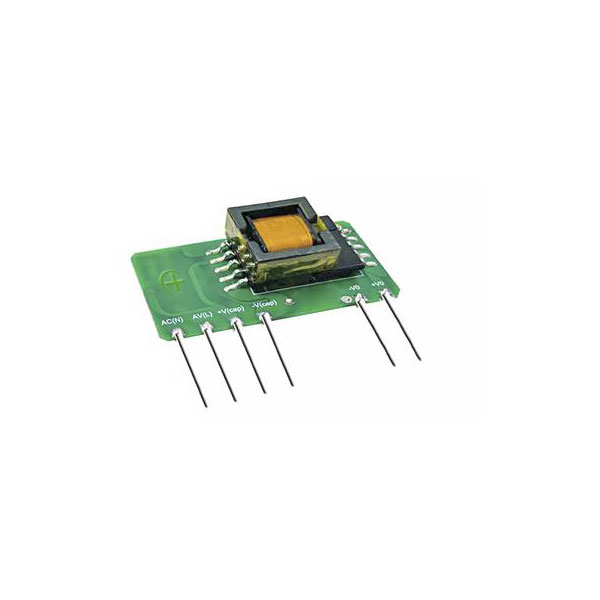

Gaptec 5ACF1W_24S4 AC/DC converter 24V DC 210mA 5W

Gaptec 5ACF1W_24S4 is a robust AC/DC converter engineered for demanding applications in computer power supply systems. This reliable converter delivers an output of 24 V DC at a current of 210 mA, providing a power capacity of 5 W. Its compact design and efficient energy conversion make it suitable for integration into industrial automation systems, remote sensor power supplies, and compact embedded systems. The utilisation of this device ensures stable voltage regulation, which is essential for maintaining the reliability and longevity of sensitive electronic components. With its capability to handle fluctuating input voltages, the Gaptec 5ACF1W_24S4 serves as an optimal solution in environments requiring continuous and consistent power performance.

Output Power Max	5W
Output Voltage	24V DC
Output Current	210mA
Dimensions	(L x W x H) 44.5 x 13.0 x 25.0 mm
Efficiency	80%
Enclosure	SIP 16 (6-pin)
Height	25.0mm
Insulation Voltage	4kV
Length	44.5mm
Max. output current	210mA
Operating temperature (max.)	85°C
Operating temperature (min.)	-40°C
Product Type	AC/DC converter
Type	5ACF1W_4
Weight	40g
Width	13.0mm
