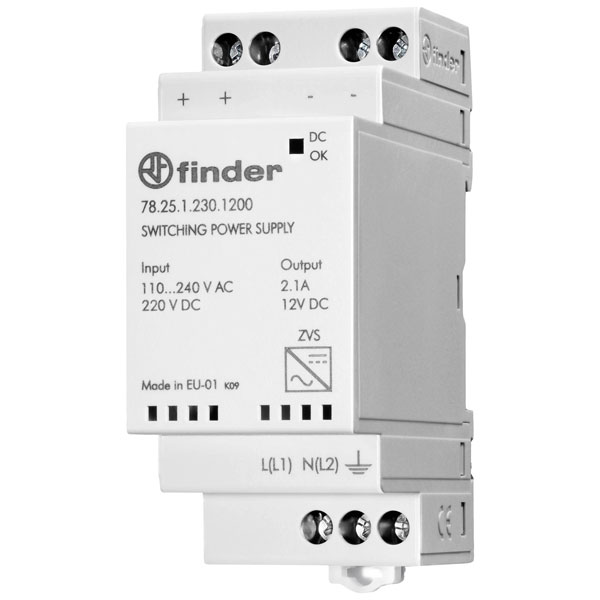

The Finder 78.25.1.230.1200 is a rail mounted PSU providing 12 V DC output, delivering up to 2.1 A with a power rating of 25 W. It is designed for efficient and reliable performance in industrial settings, easily mounting on DIN rails for streamlined installation. Ideal for use in automation systems, control panels, and other industrial applications where consistent power supply is essential.
| Type |
Rail mounted PSU (DIN) |
| Nominal value output current 1 |
2.1A |
| Power Rating |
25W |
| Built-in height |
N/A |
| Built-in width |
N/A |
| Degree of protection (IP) |
IP20 |
| Degree of protection (NEMA) |
N/A |
| Depth |
56.5mm |
| Efficiency |
89% |
| Height |
84mm |
| Input voltage AC (frequency-specific) |
110 - 240V |
| IP Rating |
IP20 |
| Max. output current 2 |
N/A |
| Max. output current 3 |
N/A |
| Maximum Temperature |
+60°C |
| Min. temperature |
-20°C |
| Minimum Input Voltage [AC] |
110V |
| Misc Attribute 2 |
Switched PSU |
| Nominal Input Voltage |
110 - 240 /ACV |
| Nominal value output current 2 |
N/A |
| Nominal value output current 3 |
N/A |
| Nominal value output voltage 1 |
12V |
| Nominal value output voltage 1 [DC] |
12V |
| Nominal value output voltage 2 |
N/A |
| Nominal value output voltage 3 |
N/A |
| Performance level according to EN ISO 13849-1 |
N/A |
| Power Consumption |
56VA |
| Power Output |
25W |
| Rated supply voltage AC 50 Hz |
110 - 240V |
| Rated supply voltage AC 60 Hz |
110 - 240V |
| Rated supply voltage DC |
220 - 220V |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Suitable for distribution board |
true |
| Suitable for safety functions |
false |
| Suitable for wall mounting |
rail |
| Type of electric connection |
Screw connection |
| Voltage type (supply voltage) |
AC/DC |
| Width |
35mm |
| Width in number of modular spacings |
2 |
