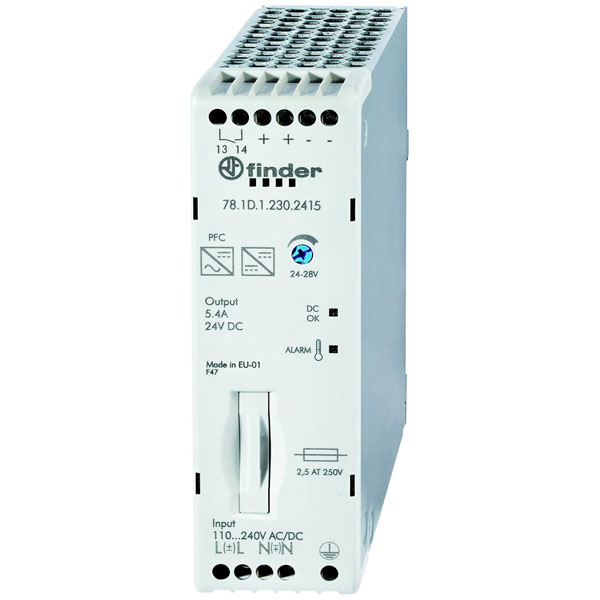

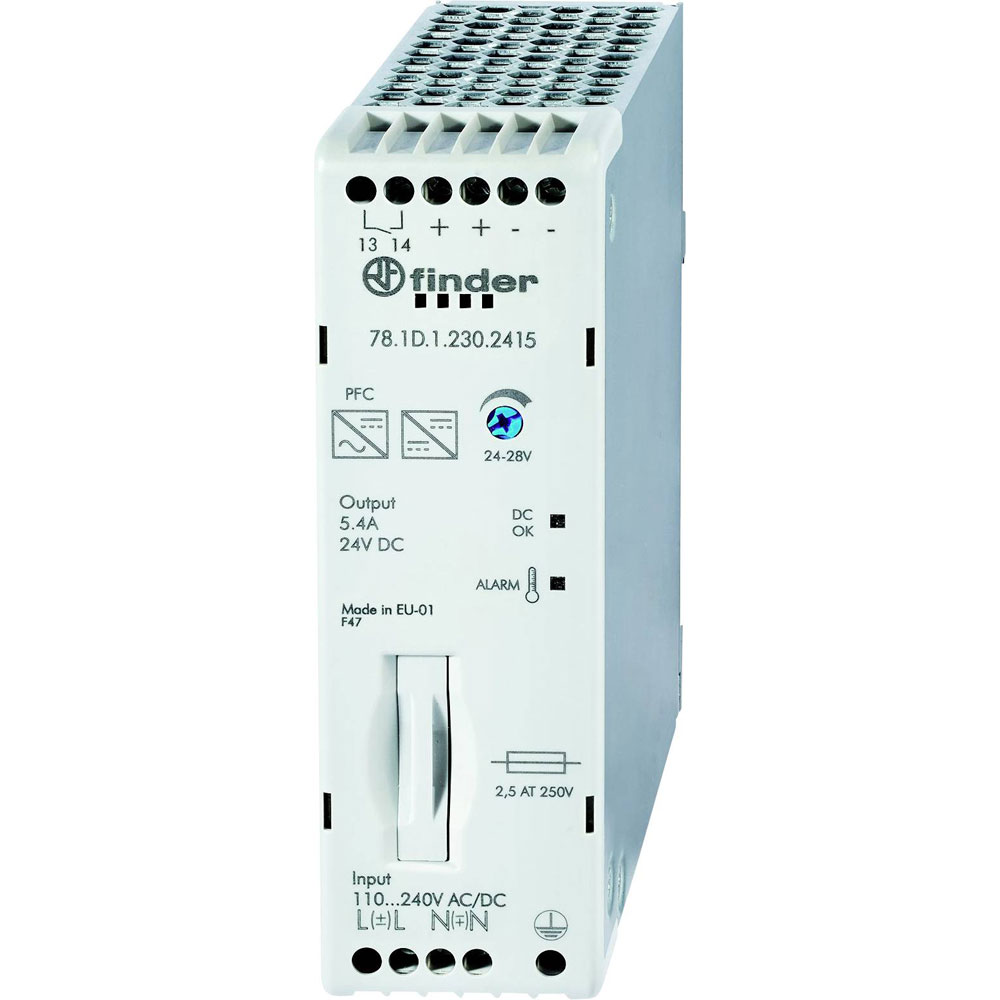

Finder 78.1D.1.230.2415 Rail PSU 24V DC 5.4A 130W DIN mount adjustable output

Finder
Order Code:

03-4422

Brand: Finder MPN: 78.1D.1.230.2415 EAN-13: 8012823402697
Qty Unit Price (Ex VAT)
1+ £139.75
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
5 in stock, despatched in 4 working days

The Finder 78.1D.1.230.2415 rail mounted power supply unit provides 24 V DC output at 5.4 A, delivering a total power of 130 W. Designed for industrial applications, this DIN rail PSU ensures reliable power distribution in control panels and automation systems. This single-piece unit is ideal for use in installations requiring compact and efficient power solutions.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Output Current 5.4A
Power Rating 130W
1st secondary output voltage 24 - 28V
Built-in height N/A
Built-in width N/A
Connection Screw terminal
Degree of protection (IP) IP20
Degree of protection (NEMA) N/A
Depth 125mm
Dim (L x W x H) 129.3 x 40 x 136 mm
Direct mounting possible N/A
Height 136mm
IP Rating IP20
Length 129.3mm
Max. output current 5.4A
Max. output current 1 5.4A
Max. output current 2 N/A
Max. output current 3 N/A
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute 2 Switched PSU
Nominal Input Voltage 110 - 240 V/AC
Nominal value output current 1 5.4A
Nominal value output current 2 N/A
Nominal value output current 3 N/A
Nominal value output voltage 1 24V
Nominal value output voltage 2 N/A
Nominal value output voltage 3 N/A
Output type (power supply units) Adjustable
Output voltage stabilized true
Performance level according to EN ISO 13849-1 None
Power Consumption 145VA
Power Output 130W
Rated supply voltage AC 50 Hz 110 - 240V
Rated supply voltage AC 60 Hz 110 - 240V
Rated supply voltage DC 110 - 240V
Secondary voltage adjustable false
Short-circuit-proof true
SIL according to IEC 61508 None
Stabilized true
Suitable for distribution board true
Suitable for rail mounting true
Suitable for safety functions false
Type of electric connection Screw connection
Voltage type (supply voltage) AC/DC
Wall mounting possible false
Width 40mm
Width in number of modular spacings N/A
