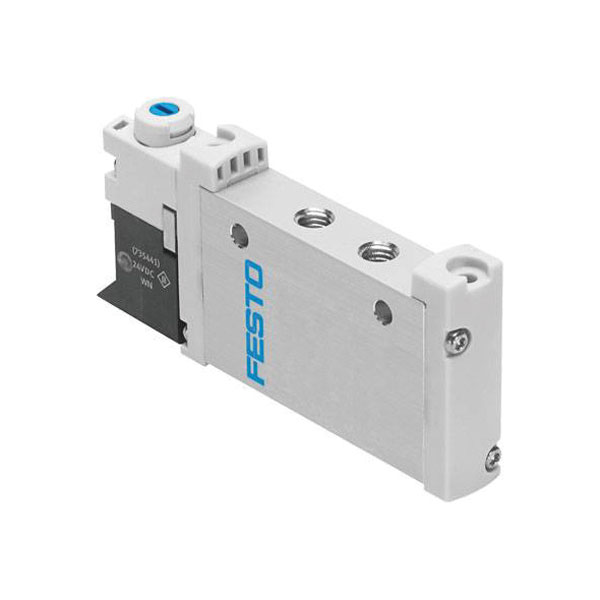

FESTO Pneumatic Valves Magnetic valve 612409

FESTO Brand: FESTO
The FESTO VUVG magnetic valves are compact and durable, designed for high flow applications, illustrating the manufacturer's commitment to quality engineering.
Description Image Product Buy Pricing (Ex VAT) Maximum Operating Pressure Minimum Operating Pressure Connection Control pressure (max.) Control pressure (min.) Function IP Rating Max. ambient temperature Max. media temperature Media temperature (range) Misc Attribute Nominal width Switching Frequency Type Enclosure material Media temperature (min.) Min. ambient temperature Operating medium
FESTO 566457 VUVG magnetic valve M5 3.2mm compact high flow durable
FESTO 566457 VUVG magnetic valve M5 3.2mm compact high flow durable
Extended range
Order code: 03-2956
MPN: 566457

Available to back order
1+ £56.70
Price per unit Ex VAT 		8bar 2.5bar M5 8bar 2.5bar 5/2 mono-stable 60°C 60°C -5 up to 60 °C Normal rated flow 220 l/min 3.2mm Magnetic valve Aluminium wrought alloy -5°C -5°C According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 574230 VUVG magnetic valve 5.6mm G 1/8 compact durable design
FESTO 574230 VUVG magnetic valve 5.6mm G 1/8 compact durable design
Extended range
Order code: 03-2975
MPN: 574230

Available to back orderBack order, lead time 14 days
1+ £163.94
Price per unit Ex VAT 		8bar 1.5bar G 1/8 8bar 1.5bar 5/2 bi-stable IP65 60°C 60°C -5 up to 60 °C Normal nominal flow rate: 700 l/min-780 l/min 5.6mm Magnetic valve Aluminium wrought alloy -5°C -5°C According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 574371 VUVG Magnetic valve G1/8 5.6mm high flow compact durable
FESTO 574371 VUVG Magnetic valve G1/8 5.6mm high flow compact durable
Standard range
Order code: 03-2981
MPN: 574371

3 available to back orderBack-order availability date - 09/01/2026
1+ £67.78
Price per unit Ex VAT 		8bar 3bar G 1/8 8bar 3bar 5/2 mono-stable 60°C 60°C -5 up to 60 °C Normal nominal flow rate: 700 l/min-780 l/min 5.6mm Magnetic valve Aluminium wrought alloy -5°C -5°C According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 8042539 VUVG magnetic valve M5 compact robust high flow
FESTO 8042539 VUVG magnetic valve M5 compact robust high flow
Extended range
Order code: 03-3145
MPN: 8042539

Available to back order
1+ £37.60
Price per unit Ex VAT 		7bar 2.5bar M5 5/2 mono-stable IP40 50°C 50°C -5 up to 50 °C Normal nominal flow rate: 195 l/min 2Hz Magnetic valve Aluminium wrought alloy -5°C -5°C According to ISO 8573-1:2010 compressed air [7:4:4]
FESTO 8042567 VUVG magnetic valve G 1/8 compact high flow robust
FESTO 8042567 VUVG magnetic valve G 1/8 compact high flow robust
Extended range
Order code: 03-3146
MPN: 8042567

Available to back order
1+ £46.60
Price per unit Ex VAT 		7bar 2.5bar G 1/8 5/2 mono-stable IP65 50°C 50°C -5 up to 50 °C Normal nominal flow rate: 660 l/min 2Hz Magnetic valve Aluminium wrought alloy -5°C -5°C According to ISO 8573-1:2010 compressed air [7:4:4]
