FESTO 574230 VUVG magnetic valve 5.6mm G 1/8 compact durable design

FESTO
Order Code:

03-2975

Brand: FESTO MPN: 574230

Discontinued

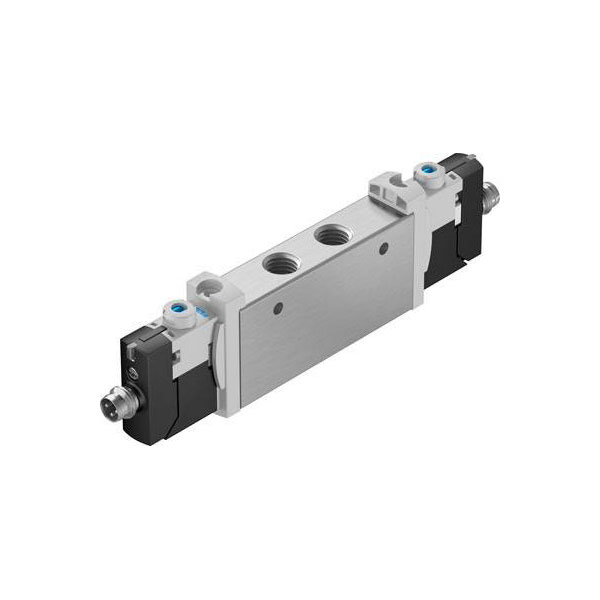

The FESTO Magnetic Valve 574230 features a nominal width of 5.6 mm and is designed for efficient water flow control. Manufactured by FESTO, it is known as an all-fluid valve with a G 1/8 connection, suitable for precise fluid regulation. It is typically used in industrial and automation applications.
Type Magnetic valve
Connection G 1/8
Control pressure (max.) 8bar
Control pressure (min.) 1.5bar
Enclosure material Aluminium wrought alloy
Function 5/2 bi-stable
IP rating IP65
Manufacturer part # 574230
Max. ambient temperature 60°C
Max. media temperature 60°C
Max. operating pressure 8bar
Media temperature (min.) -5°C
Media temperature (range) -5 up to 60 °C
Min. ambient temperature -5°C
Misc Attribute Normal nominal flow rate: 700 l/min-780 l/min
Nominal width 5.6mm
Operating medium According to ISO 8573-1:2010 compressed air [7:4:4]
Operating pressure (min.) 1.5bar
Weight 89g
