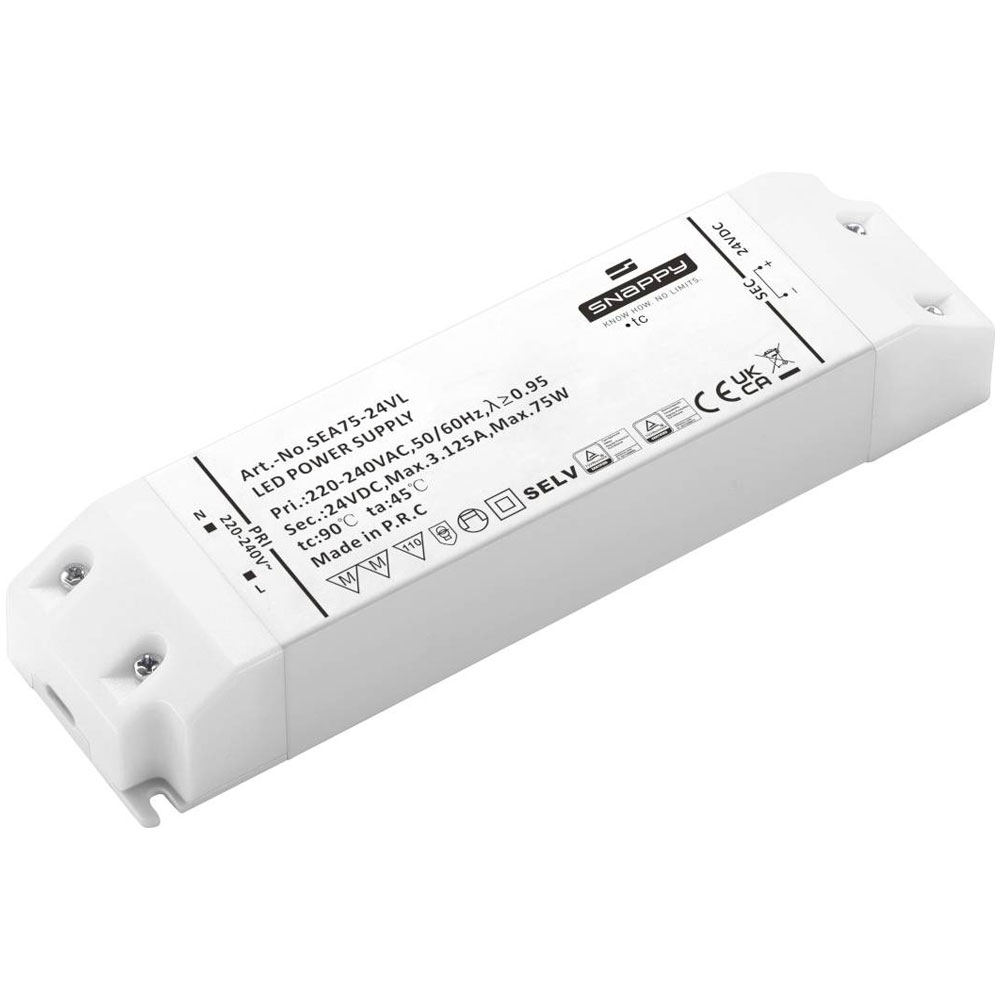

Dehner Elektronik SEA 75-24VL LED Driver 75W 24V DC Surge Protected

Dehner Elektronik
Standard range
Order Code:

02-4664

Brand: Dehner Elektronik MPN: SEA 75-24VL
Qty Unit Price (Ex VAT)
1+ £15.38
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
12 in stock, despatched in 4 working days

The Dehner Elektronik SEA 75-24VL LED driver provides a constant voltage of 24 V DC with a power output of 75 W and a current of 3.12 A. It features surge protection and overvoltage safeguards, ensuring reliable operation. This LED driver is approved for use on furniture, making it suitable for powering LED strips and other low-voltage lighting applications.
Type LED driver
Connection Screw terminal
Dim (L x W x H) 170 x 44.5 x 28.2 mm
Factory colour White blue
Height 28.2mm
Input voltage (max.) 240V DC
IP rating IP20
Length 170mm
Max. output current 3.12A
Max. power 75W
Max. temperature 45°C
Min. input voltage 220V AC
Min. temperature -20°C
Misc Attribute 1 Constant voltage
Misc Attribute 2 Switched PSU
No. of inputs 1
No. of outputs 1
Output current (max.) - rounded 3.12A
Output voltage (max.) 24V DC
Power range 75 W (max)
Protection class IP20
Test mark MM; CE; UKCA; SELV; TÜV
Weight 250g
Width 44.5mm
