Basetech BT-2250248 PSDS-15-24-2 DIN Rail PSU 24V 0.63A 15W 1 Output

Basetech
Order Code:

08-5396

Brand: Basetech MPN: BT-2250248 EAN-13: 4064161040059
Qty Unit Price (Ex VAT)
1+ £9.70
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Available to back orderPlease contact us for lead time

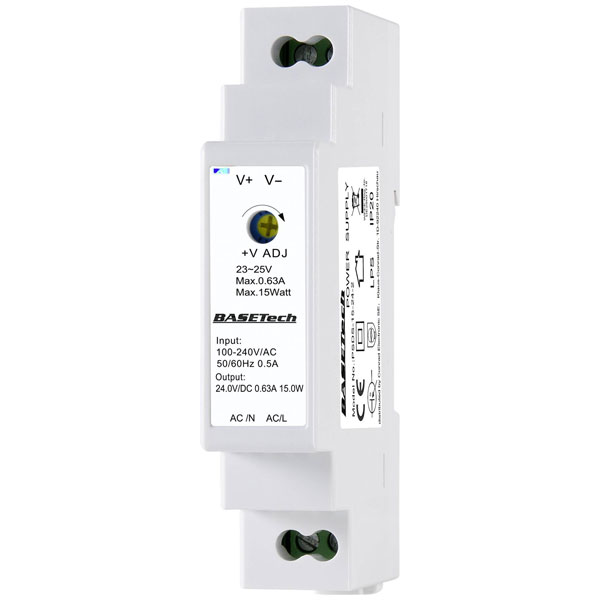

The Basetech PSDS-15-24-2 rail mounted PSU is a 24 V, 0.63 A, 15 W power supply unit designed for industrial applications. It features a single output and is ideal for use in environments requiring reliable din rail power supplies. Typical applications include powering control cabinets and other industrial systems.
Type Rail mounted PSU (DIN)
Output Voltage 24V DC
Connection Screw terminal
Dim (L x W x H) 58 x 18 x 90 mm
Efficiency 86%
Height 90mm
Input Voltage 100-240 V/50 - 60 Hz
Input voltage (max.) 240V AC
Inputs 0.5A
Length 58mm
Max. operating temperature (derating) 50°C
Max. output current 0.63A
Max. temperature 80°C
Min. input voltage 100V AC
Min. operating temperature (derating) -20°C
Min. temperature -40°C
Misc Attribute 1 Din Rail PSUs
Misc Attribute 2 PSDS-15-24-2
Number of Outputs 1
Operating temperature (max.) 50°C
Operating temperature (min.) -20°C
Output current (max.) - rounded 630mA
Output voltage (nominal) 24V
Plastic free packaging Plastic-free packaging
Power 15W
Width 18mm
