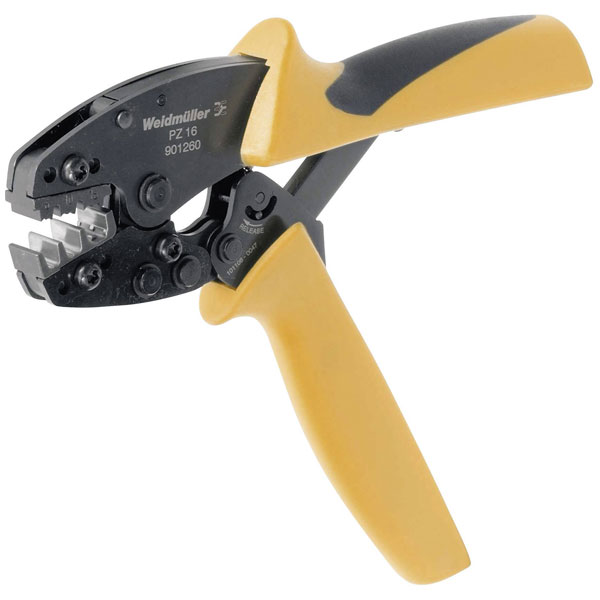

The Weidmüller PZ 16 is a crimping tool designed for ferrules ranging from 6 to 16 mm². It provides precise and reliable crimping, ideal for electrical and industrial applications. The tool ensures secure connections, making it suitable for professional use in wiring installations.
| Type |
Crimper |
| For Use With |
Ferrules |
| Length |
200mm |
| Compression shape |
Other |
| Conductor cross-section, max. AWG |
AWG 6 |
| Conductor cross-section, min. AWG |
AWG 10 |
| Construction/operation |
Mechanical |
| Crimp area |
6 up to 16mm² |
| Crimp area (max.) |
16mm² |
| Crimp area (min.) |
6mm² |
| Crimp area AWG |
6 up to 10 awg |
| Crimp area AWG (max.) |
6AWG |
| Crimp area AWG (min.) |
10AWG |
| Crimping range, max. |
16mm² |
| Crimping range, min. |
6mm² |
| Crimping type/profile |
Indent crimp |
| Cross Section |
6 - 16 |
| Description of article |
(2)Crimping tool |
| Drive |
mechanical |
| ECLASS 14 |
21-04-38-11 |
| ECLASS 15.0 |
21-04-38-11 |
| ETIM 10 |
EC000168 |
| ETIM 8.0 |
EC000168 |
| ETIM 9.0 |
EC000168 |
| GTIN (EAN) |
4008190035440 |
| Height |
220mm |
| Inserts exchangeable |
true |
| Mount |
Wire |
| Net weight |
429.8g |
| Number of included inserts |
0 |
| Radiation Hardening |
No |
| REACH SVHC |
Lead 7439-92-1 |
| Reach SVHC Compliant |
No |
| RoHS Compliance Status |
Not affected |
| RoHS Compliant |
No |
| SCIP |
2159813b-98fd-4068-b62a-bc89a046c012 |
| Suitable For |
Cable end sleeves |
| Type of contact |
Wire-end ferrules with/ |
| Weight |
419.2g |
| Width |
200mm |
| Width (inches) |
7.874 inch |
| Wire end ferrules cross-section, max. |
16mm² |
| Wire end ferrules cross-section, min. |
6mm² |
| Wire Gauge (Max) |
10AWG |
| Wire Gauge (Min) |
6AWG |
| With automatic return |
true |
| With locking device (for mechanical tools) |
true |
