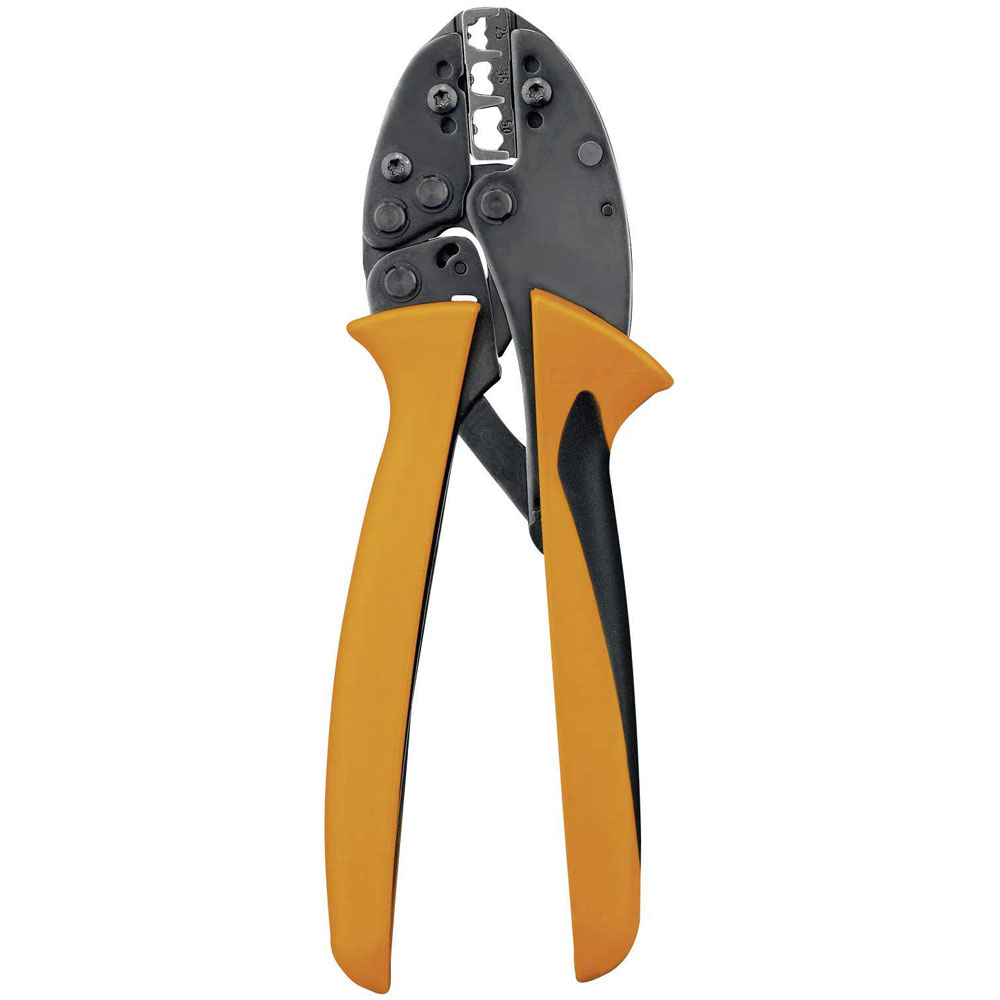

The Weidmüller PZ 50 9006450000 crimper is a high-quality tool designed for crimping ferrules from 25 up to 50 mm². It features user-friendly operation and precise crimping capability, ensuring reliable connections. Typically used in electrical installations, it is an essential tool for professionals working with large cable sections.
| Type |
Crimper |
| For Use With |
Ferrules |
| Length |
250mm |
| Compression shape |
Other |
| Conductor cross-section, max. AWG |
AWG 0 |
| Conductor cross-section, min. AWG |
AWG 4 |
| Construction/operation |
Mechanical |
| Contains Lead |
No |
| Crimp area |
25 up to 50mm² |
| Crimp area (max.) |
50mm² |
| Crimp area (min.) |
25mm² |
| Crimp area AWG |
0 up to 4 awg |
| Crimp area AWG (max.) |
0AWG |
| Crimp area AWG (min.) |
4AWG |
| Crimping range, max. |
50mm² |
| Crimping range, min. |
25mm² |
| Crimping type/profile |
Indent crimp |
| Cross Section |
25 - 50 |
| Description of article |
(1)Crimping tool |
| Drive |
mechanical |
| ECLASS 14 |
21-04-38-11 |
| ECLASS 15.0 |
21-04-38-11 |
| ETIM 10 |
EC000168 |
| ETIM 8.0 |
EC000168 |
| ETIM 9.0 |
EC000168 |
| GTIN (EAN) |
4008190095796 |
| Height |
270mm |
| Inserts exchangeable |
true |
| Mount |
Wire |
| Net weight |
595.3g |
| Number of included inserts |
0 |
| Radiation Hardening |
No |
| REACH SVHC |
Lead 7439-92-1 |
| RoHS Compliance Status |
Not affected |
| RoHS Compliant |
No |
| SCIP |
2159813b-98fd-4068-b62a-bc89a046c012 |
| Suitable For |
Cable end sleeves |
| Type of contact |
Wire-end ferrules with/ |
| Weight |
595.3g |
| Width |
250mm |
| Width (inches) |
9.8425 inch |
| Wire end ferrules cross-section, max. |
50mm² |
| Wire end ferrules cross-section, min. |
25mm² |
| Wire Gauge (Max) |
3AWG |
| Wire Gauge (Min) |
1AWG |
| With automatic return |
true |
| With locking device (for mechanical tools) |
true |
