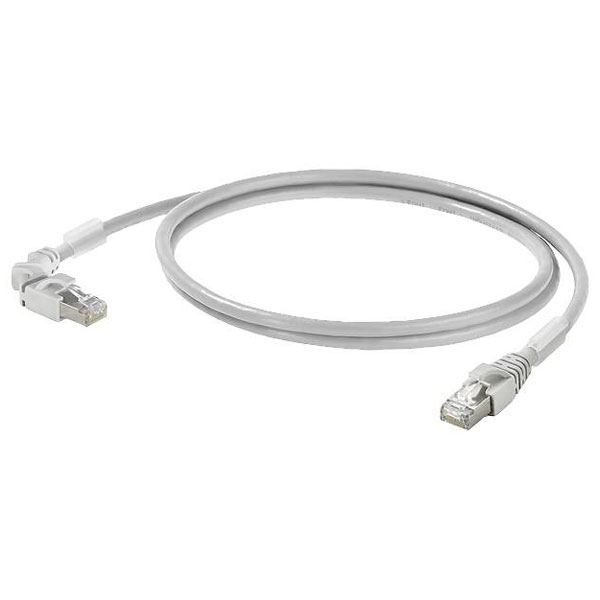

Weidmüller 2703320012 is a highly specialised RJ45 network cable designed for high-performance data transmission. This CAT 6A S/FTP cable, measuring 1.20 metres in length and finished in a grey sheath, is engineered for applications demanding robust shielding and superior noise immunity, making it ideal for professional network installations. Utilising shielded Foiled Twisted Pair (S/FTP) construction, this patch cable supports reliable ethernet connectivity in high-density routers, switches, and data centres, ensuring seamless high-speed broadband and network communication. The cable offers excellent electromagnetic interference (EMI) suppression, making it suitable for use in environments with significant electrical interferences. This precision-engineered network cable meets stringent electronic industry standards, positioning it as a dependable choice for engineers requiring advanced networking capabilities.
| LAN Category |
Other |
| Length |
1.20m |
| Colour |
Grey |
| Type |
Cat6A cable |
| angled 90° left, plug, |
straight, plug, Plastic, |
| Anti-kink sleeve |
None |
| Application-specific communication |
ANSI / TIA / EIA-568- |
| Arrangement of wire cores |
Twisted pair |
| AWG |
4*2*AWG 27/7 - 4*2*0,1mm² |
| Cable construction |
4x2 |
| cable facilities |
B.2-10, ISO / IEC |
| Cable Type |
S/FTP |
| Cable Use |
Networks |
| Capacity at 1 kHz |
46 nF/km |
| Category |
<20 m: Cat.6A / >20 m |
| Certificate no. (cULus) |
E316369 |
| Characteristic impedance |
100 ± 15 O at 1–100 |
| Colour anti-kink sleeve |
Grey |
| Colour outer sheath |
Grey |
| Colour sequence or wires - wire pairs |
white - blue, white - |
| Complete shielding |
Shielding braid made from |
| Connection Type |
RJ45 |
| Connector standard |
IEC 60603-7-51 |
| Connector Version |
angled on one side |
| Cross-section |
4*2*AWG 27/7 - 4*2*0.1 |
| Current-carrying capacity at 50 °C |
1 A |
| Degree of protection (IP) |
IP20 |
| Delay skew |
2.5 ns/100m |
| ECLASS 14 |
27-06-03-08 |
| ECLASS 15.0 |
27-06-03-08 |
| ETIM 10 |
EC002599 |
| ETIM 8.0 |
EC002599 |
| ETIM 9.0 |
EC002599 |
| Flame retardant |
According to IEC/EN 60332-3-24 |
| GTIN (EAN) |
4050118711370 |
| Halogen |
halogen-free, according to |
| Halogen-free |
Yes |
| Installation temperature |
0 °C...50°C |
| Insulation |
PE |
| Insulation cross-section |
1.04mm |
| Length (inches) |
47.2441 inch |
| Locking lever |
true |
| Material connector housing, connection 1 |
Plastic |
| Material connector housing, connection 2 |
Plastic |
| Material sheath |
LSZH |
| Max. frequency |
500MHz |
| Min. bending radius, once only |
4 x cable diameter |
| Net weight |
61g |
| No. of A connectors |
1 |
| No. of B connections |
1 |
| Number of wires |
8 |
| NVP value |
78 |
| Operating Temperature |
-20 °C...60°C |
| Operating Voltage |
50 V DC |
| Operating voltage (UL rating) |
30 V AC / 42.4 V DC |
| Overlap of shielding braid |
60 % |
| Pin assignment |
Other |
| Plastic, shielded |
shielded |
| Plug left |
RJ45, IP20, male contact, |
| Plug right |
RJ45, IP20, male contact, |
| PoE / PoE+ |
conforming to IEEE |
| Product Type |
Network cable, patch cable |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Resistance differential |
5 % |
| Resistance to spread of flame |
in accordance with IEC |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Sheath diameter, max. |
5.9mm |
| Sheath diameter, min. |
5.5mm |
| Sheathing colour |
grey |
| Shielding |
S/FTP |
| Specification |
CAT 6A |
| Storage temperature |
-20 °C...60°C |
| Strands |
7 |
| Suitable for cable guide chain |
false |
| Test voltage: wire-wire-shield |
2.5 kV / DC for 2 sec |
| Type A |
RJ45 plug |
| Type B |
RJ45 plug |
| Type of connector connection 1 |
RJ45 8(4) |
| Type of connector connection 2 |
RJ45 8(4) |
| UL File Number Search |
UL Website |
| Version |
Cable |
| Wire pair shielding |
Aluminium foil |
| Wiring |
Dimensioned drawing |
