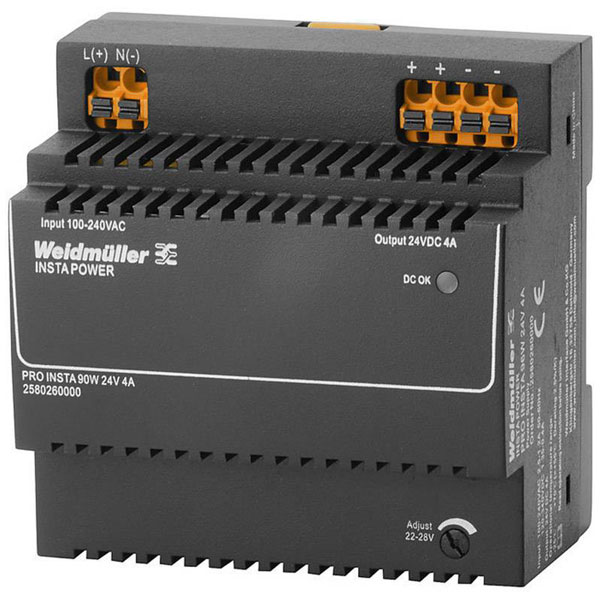

Weidmüller 2580260000 pro insta power supply 24V 4A 96W 1pc

The Weidmüller PRO INSTA 96W 24V 4A SMPSU is a reliable rail mount power supply unit providing 96 W of power at 24 V DC and 4 A. This industrial power supply unit is suitable for various applications requiring stable and efficient power management. Typical uses include integration into control panels and other industrial automation systems.

Type	SMPSU
Output Voltage	24V DC
Output Current	4A
Power Rating	96W
1st secondary output voltage	24 - 24
AC current consumption	1.2 A @ 230 V AC / 2.5 A
AC input voltage range	85...264 V AC (derating at
Capacitive load	unrestricted
Certificate no. (cULus)	E258476
Conductor cross-section, AWG/kcmil , 12 AWG	Conductor cross-section, AWG/kcmil , 24 AWG
Conductor cross-section, flexible , max. 2.5 mm²	Conductor cross-section, flexible , min. 0.25mm²
Conductor cross-section, rigid , max.	2.5mm²
Conductor cross-section, rigid , min.	0.25mm²
Connection	Push-in connector
currents	EN 61000-4-3 and EN
DC current consumption	0.4 A @ 370 V DC / 1.35
DC input voltage range	95…370 V DC
Degree of efficiency	87 %
Degree of protection (IP)	IP20
Depth	60
Depth (inches)	2.3622 inch
Dim	(L x W x H) 60 x 90 x 90 mm
Direct mounting possible	false
ECLASS 14	27-04-07-01
ECLASS 15.0	27-04-07-01
Efficiency	87%
Electrical machine equipment	Acc. to EN60204
EN55032	EN 61000-4-3 and EN
ETIM 10	EC002540
ETIM 8.0	EC002540
ETIM 9.0	EC002540
Frequency range AC	45…65 Hz
GTIN (EAN)	4050118590999
Height	90mm
Height (inches)	3.5433 inch
Housing version	Plastic, protective
Input fuse (internal)	Yes
Input Voltage	85 - 264 V/AC, 95 - 370V DC
Inrush current	max. 40 A
Insulation voltage input / earth	3.5 kV
Insulation voltage output / earth	0.5 kV
Insulation voltage, input/output	4 kV
Interference immunity test acc. to	EN 61000-4-2 (ESD)/
IP Rating	IP20
LED green	Operating voltage OK
Length	60mm
Limiting of mains voltage harmonic	EN 61000-4-2 (ESD)/
max.	min.
Max. operating temperature (derating)	+70°C
Max. output current	4A
Max. output current 1	4
Max. temperature	+70°C
Min. operating temperature (derating)	-25°C
Min. temperature	-25°C
Misc Attribute	PRO INSTA 96W 24V 4A
Mounting position, installation notice	Horizontal on DIN rail
MTBF	750000h
Net weight	352g
Noise emission in accordance with	Class B
Nominal output current for Unom	4 A @ 55°C
Nominal power consumption	110.3 VA
Nominal value output current 1	4
Nominal value output voltage 1	24
Operating Temperature	-25 °C...70°C
Operating temperature (max.)	+70°C
Operating temperature (min.)	-25°C
Output current, max.	4 A
Output Power	96 W
Output voltage stabilized	true
Output voltage, max.	28 V
Output voltage, min.	22 V
Output voltage, note	(adjustable via
Performance level according to EN ISO 13849-1	None
Phases	1
Pollution severity	2
Power Consumption	110.3
Power loss, nominal load	12.48 W
Power Output	96
power supplies	61558-2-16
Protection against reverse voltages from 30…35 V DC	Power loss, idling
Protection Class	II
Protection degree	IP20
Ramp-up time	= 100 ms
Rated input voltage	110...240 V AC /
Rated output voltage	24 V DC ± 1 %
Rated supply voltage AC 50 Hz	100 - 240
Rated supply voltage AC 60 Hz	100 - 240
Rated supply voltage DC	120 - 340
REACH SVHC	Lead 7439-92-1, Lead monoxide 1317-36-8
Recommended back-up fuse	2 A / DI, safety fuse
Residual ripple, breaking spikes	<50 mVss @ UNenn, Full
ROHS	Yes
RoHS Compliance Status	Compliant with exemption
RoHS Version	2011/65/EU
Safety extra-low voltage	SELV acc. to IEC
Safety transformers for switch-mode	According to EN
SCIP	d62541f7-8058-4336-b693-7303c8b40800
Secondary voltage adjustable	true
Shock resistance IEC 60068-2-27	15 g In all directions
Short-circuit protection	Yes, internal
Short-circuit-proof	true
SIL according to IEC 61508	None
Stabilized	true
Start-up	= -40°C
Storage temperature	-40 °C...85°C
Suitable for distribution board	true
Suitable for rail mounting	true
Suitable for safety functions	false
TS 35, top and bottom	insulation
UL File Number Search	UL Website
Version	Power supply, switch-mode power supply unit, 24
Vibration resistance IEC 60068-2-6	2.3 g
Voltage type (supply voltage)	AC/DC
Wall mounting possible	true
Weight	352g
Width	90mm
Width (inches)	3.5433 inch
Wire connection cross section, flexible 2.5 mm²	Conductor cross-section, flexible , min. 0.25mm²
Wire connection method	PUSH IN with actuator
