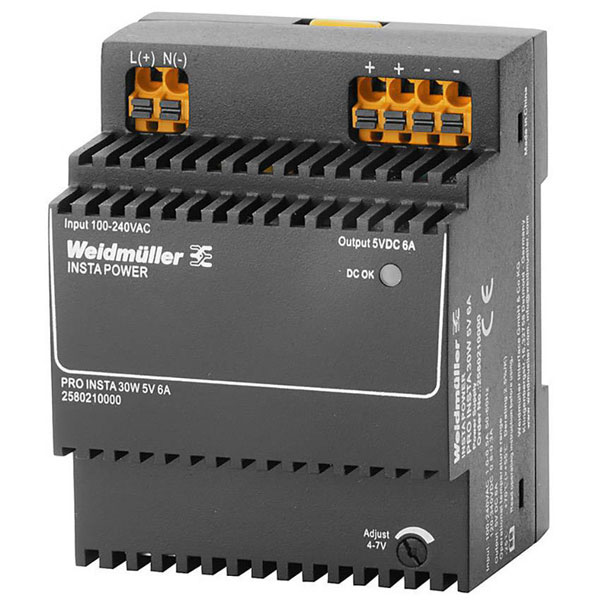

Weidmüller 2580210000 is a highly efficient DIN rail power supply unit designed for industrial applications, offering a 5V DC output with a current capacity of 6A and a total power of 30W. This PRO INSTA series module is characterised by its compact design, making it an ideal choice for integration in space-constrained environments. It is engineered to provide reliable and stable power delivery, suitable for a variety of systems including control panels, communication equipment, and automated machinery. The unit's robust construction ensures suitability for harsh industrial conditions, and its ease of installation on DIN rails simplifies configuration and maintenance within industrial power systems. This SMPSU (Switched Mode Power Supply Unit) maintains high efficiency and reduces energy losses, contributing to the operational effectiveness of the systems it supports.
| Type |
PRO INSTA 30W 5V 6A |
| Nominal value output current 1 |
6 |
| AC current consumption |
0.5 A @ 230 V AC / 1.0 A |
| AC input voltage range |
85...264 V AC (derating atV |
| Capacitive load |
unrestricted |
| Certificate no. (cULus) |
E258476 |
| Conductor cross-sectio , flexible , max. 2 |
Conductor cross-section, flexible , min. 0.25mm2 |
| Conductor cross-sectio , WG/kcmil , WG |
Conductor cross-section, AWG/kcmil , 24 AWG |
| Conductor cross-section, rigid , max. |
2.5mm2 |
| Conductor cross-section, rigid , min. |
0.25mm2 |
| Content |
1 |
| currents |
EN 61000-4-3 nd ENA |
| DC current consumption |
0.2 A @ 370 V DC / 0.5 A |
| DC input voltage range |
95...370 V DCV |
| Degree of protection (IP) |
IP20 |
| Dimensions (L x W x H) |
60 x 72 x 90mm |
| ECLASS 14 |
27-04-07-01 |
| ECLASS 15.0 |
27-04-07-01 |
| Electrical machine equipment |
Acc. to EN60204 |
| EN55032 |
EN 61000-4-3 nd ENA |
| ETIM 10 |
EC002540 |
| ETIM 8.0 |
EC002540 |
| ETIM 9.0 |
EC002540 |
| Frequency range AC |
45...65 HzHz |
| GTIN (EAN) |
4050118590937 |
| Housing version |
Plastic, protective°C |
| Input fuse (internal) |
Yes |
| Input voltage DC |
85 - 264 V/AC, 95 - 370V DC |
| Inrush current |
max. 40A |
| Insulation voltage input / earth |
3.5kV |
| Insulation voltage output / earth |
0.5kV |
| Insulation voltage, input/output |
4kV |
| Interference immunity test acc. to |
EN 61000-4-2 (ESD)/ |
| IP Rating |
IP20 |
| LED green |
Operating voltage OK |
| Limiting of mains voltage harmonic |
EN 61000-4-2 (ESD)/ |
| max. |
min.min |
| Max. operating temperature (derating) |
+70°C |
| Maximum Operating Temperature |
+70°C |
| Maximum Temperature |
+70°C |
| Min. operating temperature (derating) |
-25°C |
| Min. temperature |
-25°C |
| Mounting position, installation notice |
Horizontal on DIN rail |
| MTBF |
750000h |
| Net weight |
256g |
| Noise emission in accordance with |
Class B |
| Nominal output current for Unom |
6 A @ 55°C |
| Nominal power consumption |
36.6VA |
| Nominal value output voltage 1 |
5 |
| Operating Temperature |
-25 °C...70°C |
| Operating temperature (min.) |
-25°C |
| Output current (max.) - rounded |
6A |
| Output current, max. |
6A |
| Output Power |
30W |
| Output voltage (max.) |
7V |
| Output Voltage (max.) [DC] |
7V |
| Output voltage (min.) |
4V |
| Output voltage (min.) [DC] |
4V |
| Output voltage, note |
(adjustable via |
| Performance level according to EN ISO 13849-1 |
N/A |
| Phases |
1 |
| Pollution severity |
2 |
| Power |
30W |
| Power Consumption |
36.6 |
| Power loss, nominal load |
5.4W |
| Power Output |
30 |
| power supplies |
61558-2-16 |
| Product Type |
SMPSU |
| Protection against reverse voltages from 8...10 V DC |
Power loss, idlings |
| Protection Class |
II |
| Protection degree (IP rating) |
IP20 |
| Ramp-up time |
100ms |
| Rated input voltage |
110...240 V AC /V |
| Rated output voltage |
5 V DC ± 2 % |
| Rated supply voltage AC 50 Hz |
100 - 240 |
| Rated supply voltage AC 60 Hz |
100 - 240 |
| Rated supply voltage DC |
120 - 340 |
| REACH SVHC |
Lead 7439-92-1, Lead monoxide 1317-36-8l |
| Recommended back-up fuse |
2 A / DI, safety fuse |
| Residual ripple, breaking spikes |
<50 mVss @ UNenn, Full |
| ROHS |
Yes |
| RoHS Compliance Status |
Compliant with exemption |
| RoHS Version |
2011/65/EU |
| Safety extra-low voltage |
SELV acc. to IEC |
| Safety transformers for switch-mode |
According to EN |
| SCIP |
d62541f7-8058-4336-b693-7303c8b40800°C |
| Shock resistance IEC 60068-2-27 |
15 In all directionsg |
| Short-circuit protection |
Yes, internal |
| Short-circuit-proof |
true |
| SIL according to IEC 61508 |
N/A |
| Start-up |
-40°C |
| Storage temperature |
-40 °C...85°C |
| Suitable for distribution board |
true |
| Suitable for safety functions |
false |
| Suitable for wall mounting |
rail |
| TS 35, top and bottom |
insulation |
| Type of electric connection |
Push-in connector |
| UL File Number Search |
UL Website |
| Version |
Power supply, switch-mode power supply unit, 5 V |
| Vibration resistance IEC 60068-2-6 |
2.3g |
| Voltage type (supply voltage) |
AC/DC |
| Weight |
256g |
| Wire connection cross sectio , flexible 2 |
Conductor cross-section, flexible , min. 0.25mm2 |
| Wire connection method |
PUSH IN with actuator |
