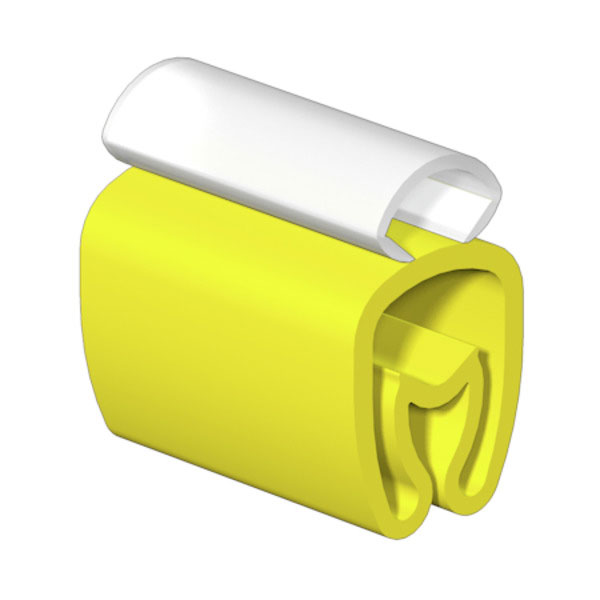

Weidműller 2571310000 Cable Coding System 5.3mm

Weidmüller produces the 2571310000 cable coding system with a diameter of 5.3 mm. This system features durable and clear cable markers for labelling and organising large cable assemblies. It is typically used in industrial automation and control panel applications.

Type	Cable coding system
Colour	Yellow
Material	Other
Basic material	TPU
Cable Diameter	2.5 - 4
Conductor cross-section, max.	2.5mm²
Conductor cross-section, min.	0.75mm²
Conductor O.D., max.	4mm
Conductor O.D., min.	2.5mm
Core diameter	0.75 - 2.5
ECLASS 14	27-28-11-02
ECLASS 15.0	27-28-11-02
ETIM 10	EC001530
ETIM 8.0	EC001530
ETIM 9.0	EC001530
GTIN (EAN)	4050118608373
Halogen	No
Height	12mm
Height (inches)	0.4724 inch
Imprint	None
Length	12
Net weight	0.41g
Operating temperature range, max.	90°C
Operating temperature range, min.	-30°C
Printed characters	without
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Transparent	false
Type of printing	neutral
UL 94 flammability rating	V-0
Version	x 5.3 mm, TPU, Colour: yellow, Transparent
Width	5.3
Width (inches)	0.2087 inch
With label space	true
